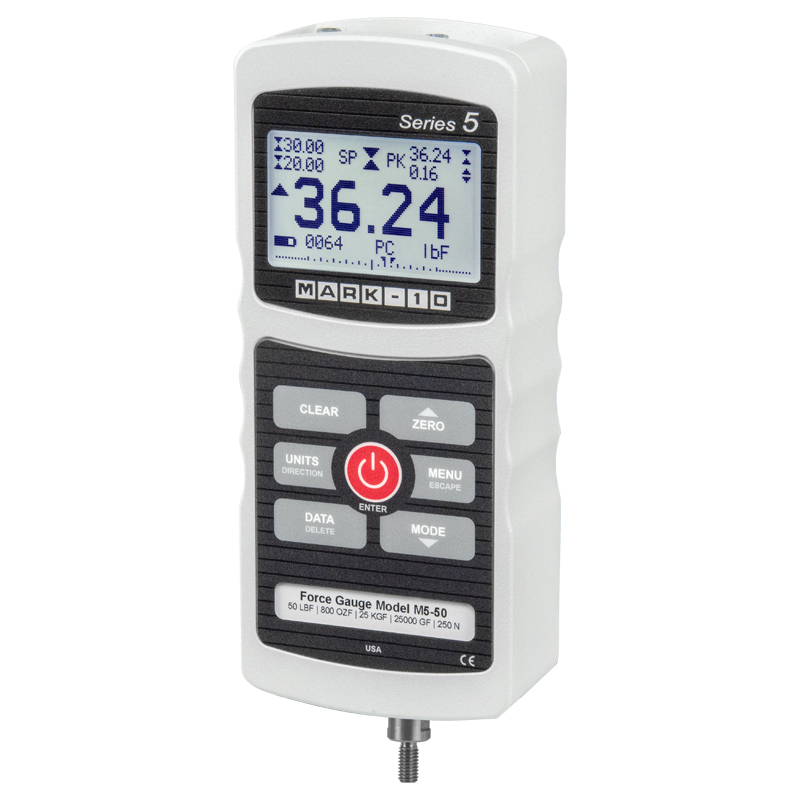

Capacity x Resolution: Force gauge, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N
Accuracy: ±0.1% of full scale
Sampling Rate: 7.000 Hz
Power: AC adapter: 100-240VAC, 50-60 Hz, 0.3 A
Battery: Rechargeable 8.4V NiMH
Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage
Battery life: Backlight on / off: up to 7 / 24 hours of continuous use
Outputs:
USB / RS-232: Configurable up to 115.200 baud. Includes Gauge Control Language 2 for full computer control
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VDC, ±2% of full scale at capacity
General purpose: Three open drain outputs, one input
Set points: Three open drain lines
Configurable settings: Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe overload: 200% of full scale (display shows “OVER” at 110% and above)
Weight (lb [kg]): 1.0 [0.45]
Load cell deflection: 0.010 [0.25]
Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensating
