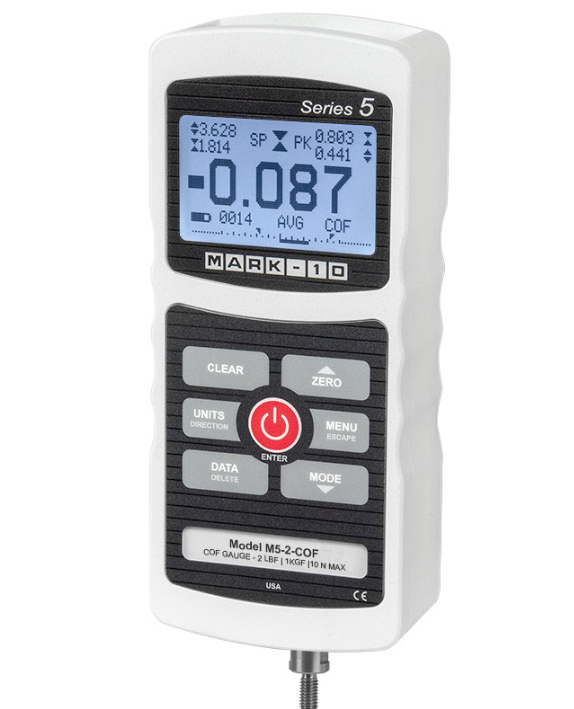

Type: COF gauge
Capacity x Resolution: 5 x 0.001 COF*, 2 x 0.0005 lbF, 32 x 0.01 ozF, 1 x 0.0002 kgF, 1000 x 0.2 gF, 10 x 0.002 N
Accuracy: ±0.1% of full scale
Sampling Rate: 7.000 Hz
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Battery life: Backlight on / off: up to 7 / 24 hours of continuous use
Outputs:
USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices
Analog: ±1 VDC, ±0.25% of full scale at capacity,
General purpose: Three open drain outputs, one input
Set points: Three open drain lines
Safe overload: 150% of full scale (display shows “OVER” at 110% and above)
Weight: 1.0 lb [0.45 kg]
Included items: Carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter,
battery, quick-start guide, USB cable, and NIST-traceable certificate of calibration with data
Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensating
