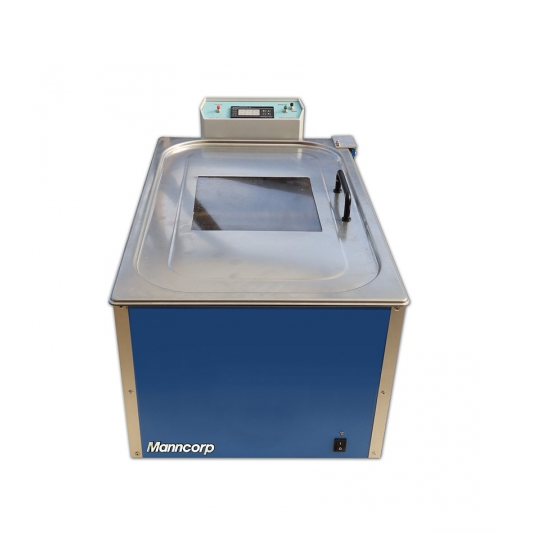

Manncorp VP230 Bench Top Vapor Phase

Manufacturer: Manncorp - USA

Model: VP230

Origin: China

Warranty: 12 months

Width:11.2" (285 mm)

Depth:23.8" (605 mm)

Height:17.7" (450mm)

Weight:33 lbs. (15 kg)

Max. PCB Size:16.9” x 9.1” x .8” (430 x 230 x 20 mm)

Standard Cycle Time:10-15 Minutes (including heating up & cooling down)

Standard Reflow Time (TAL Time Above Liquids):3 – 50 Seconds (max 70 Seconds)

Process Temperature (depends on medium type):150°C up to 240°C = 302°F up to 464°F

Solder Profiles:Adjustable temperature profiles in the pre-heating zone(CVPRS*)

Micro USB Interface:for the transfer of solder profile data to PC

Cooling:Forced Air cooling down to 70°C = 158°F

Soldering Fluid Filling:2 lbs (0.9 kg)

Water Connection:1/2"

Power Supply:220-240 VAC, 1.25 kW, 6 A
