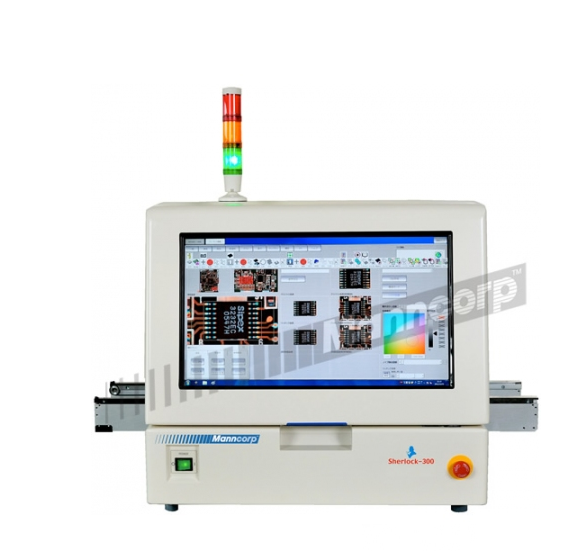

Manncorp Sherlock-300F Benchtop AOI Machine

Manufacturer: Manncorp - USA

Model: Sherlock-300F

Origin: China

Warranty: 12 months

Component Coverage: Down to 0201 (01005 available)

Minimum PCB Size: 2" x 2" (50 mm to 50 mm)

Maximum PCB Size: 13" x 9.85" (330 mm x 250 mm); 20" x 18.1" (510 mm x 460 mm) with 500L option

Topside Clearance: 1.18" (30 mm) with standard lens, 0.98" (25 mm) with high magnification (including PCB thickness); 1.77" (45 mm) with 500L option

Bottomside Clearance: 1.18" (30 mm)

Lighting System: RBG and warm-white illumination in 3-ring arrays

Camera: 2.2-megapixel color camera with 2/3" CMOS sensor with Camera. Link for high-speed data transmission and telecentric lens

Resolution: 20 µm standard lens; 14 µm high-magnification lens

Depth of Field: 0.39" (10 mm) standard lens; 0.24" (6 mm) high-magnification lens

Field of View: 1.61" x 0.87" (41 mm x 22 mm) standard lens; 1.14" x 0.59" (29 mm x 15 mm) high-magnification lens

Scanning Speed: 50cm2/sec

Motion Control: Bi-axial (X-Y) belt-driven

Repeat Position Accuracy: 50 µm

Control Resolution: 10 µm/pulse

Programming: Automatic CAD conversion, pre-defined customizable component library, touch-screen-based teaching

Offline Programming: Available

Repair Station Software: Available

SPC Software: Available

Computer Control: Core 4 Xeon with 4 GB RAM, Windows® 7 Professional, 64-bit

Power Requirements: AC100V to 230V single-phase

Air Supply: 0.5 Mpa, 5 l/min(ANR)

Environmental Requirements

Operation: 10 to 35° C/30-80% non-condensing RH

Storage: -10 to 60° C/30-80% non-condensing RH

Weight: 253 lbs (115 kg) just the unit; 302 lbs (137 kg) including PC

Dimensions (w x d x h): 24" x 30" x 21" (620 x 758 x 537 mm) (Alert light adds 11" (280 mm) in height)

Warranty: 1-year

Remote service & support: Included
