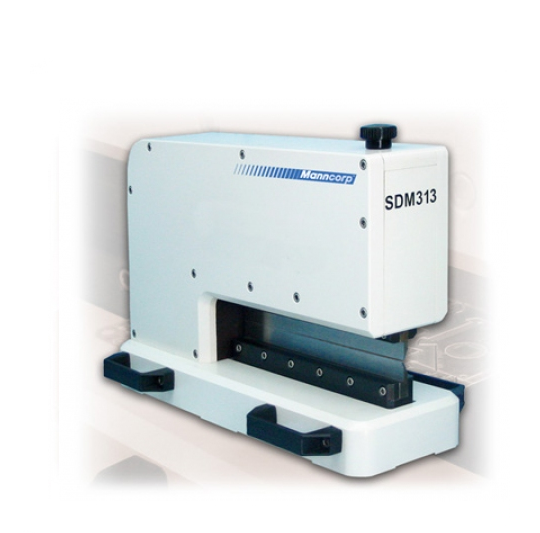

Manncorp SDM-313 PCB Depaneling Machine

Manufacturer: Manncorp - USA

Model: SDM-313

Origin: China

Warranty: 12 months

PCB Thickness: 0.5 mm to 1.2 mm (with minimum 0.15 mm scoring depth); Up to 2.0 mm (with minimum 0.5 mm scoring depth)

Maximum Depaneling Length: 300 mm (11.8") with 0.5 mm remaining PCB thickness; 200 mm (7.9") with 1.0 mm remaining PCB thickness

V-Scoring Lines:

Depth of scoring (A): ≥ 0.15 mm

Remaining PCB thickness (B): 1.0 mm max

Component from scoring (C): ≥ 0.5 mm

Scoring angle θ: ≥ 20˚ (typical)

Max. component height (D): 20 mm

Depaneling Mode: Pneumatic

Separating Speed: N/A

Production Rate: High volume

Scoring Angle: 20˚

Minimum Component Distance from V-Groove: 0.5 mm

Maximum Component Height: 20 mm

PCB Materials: FR4, CEM3, etc.

Processing table: Aluminum, FR4, CEM3, etc.

Air Requirement: 4 to 6 bar

Dimensions (L x W x H): 259 mm x 595 mm x 380 mm (10.1" x 23.4" x 14.9")

Net Weight: 140 kg (309 lbs)

Shipping Weight: 166 kg (366 lbs)
