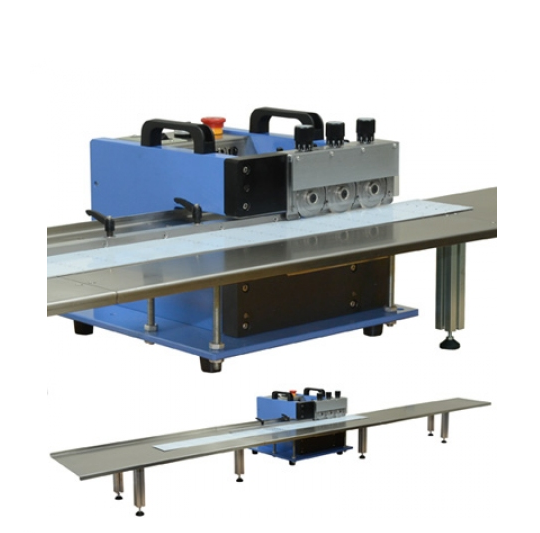

Manncorp SDM-236 LED Depaneler

Manufacturer: Manncorp - USA

Model: SDM-236

Origin: China

Warranty: 12 months

PCB Thickness: 0.8 to 1.6mm (AL); 0.8 to 3.0 mm (FR4)

Maximum Depaneling Length: Unlimited

Maximum PCB Dimension: 55mm

V-Scoring Lines:

Depth of scoring (A): ≥ 0.3 mm max (AL); ≥ 0.8 mm max (FR4)

Remaining PCB thickness (B): 1.0 mm max (AL); 1.4 mm max (FR4)

Component from scoring (C): ≥ 2 mm

Scoring angle θ: ≥ 30˚ (typical)

Max. component height (D): 15 mm

Depaneling Mode: Motorized

Separating Speed: 0 – 500 mm/s

Production Rate: Moderate to high volume

Scoring Angle: 30˚

Minimum Component Distance from V-Groove: 2 mm

Maximum Component Height: 15mm from the loading platform

PCB Materials: FR4, CEM3, etc.

Processing table: Aluminum or FR4

Air Requirement: 4 to 6 bar

Dimensions (L x W x H): 59” x 10.6” x 7.85"

Depanler: 15.75” x 15.75” x 13"

Loading Platform: 28.4” x 14.6” x 7.9”

Unloading Platform: 47.2” x 14.6” x 7.9”

Net Weight: 40 kg (88 lbs)

Shipping Weight: 75 kg (165 lbs)
