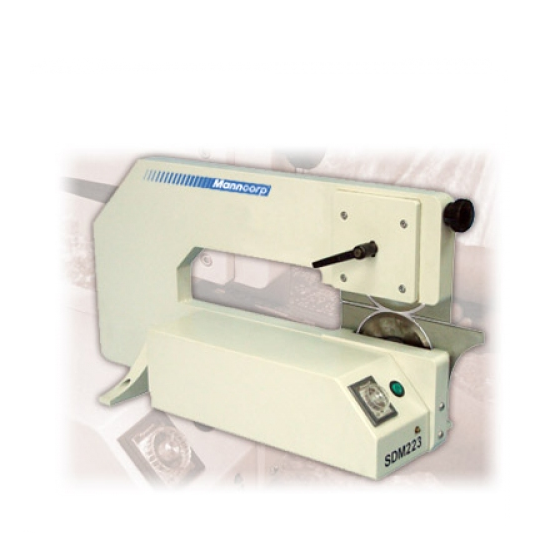

Manncorp SDM-223 Motorized PCB Depaneler

Manufacturer: Manncorp - USA

Model: SDM-223

Origin: China

Warranty: 12 months

PCB Thickness: 1.0 mm to 3.0 mm

Maximum Depaneling Dimensions: 400 mm (15.7")

V-Scoring Lines:

Depth of scoring (A): ≥ 0.25 mm

Remaining PCB thickness (B): 1.0 mm max

Component from scoring (C): ≥ 1 mm

Scoring angle θ: ≥ 20˚ (typical)

Max. component height (D): 32 mm

Depaneling Mode: Motorized

Separating Speed: Adjustable from 0 to 350 mm/sec (13.8"/sec)

Production Rate: Low to moderate volume

Scoring Angle: 20˚

Minimum Component Distance from V-Groove: 1 mm

Maximum Component Height: 32 mm (1.26")

PCB Materials: FR4, CEM3, etc.

Power: 110 V, 60 Hz 1.6 A

Dimensions (L x W x H): 260 mm x 653 mm x 346 mm (10.2" x 25.7" x 13.6")

Net Weight: 48 kg (106 lbs)

Shipping Weight: 73 kg (161 lbs)
