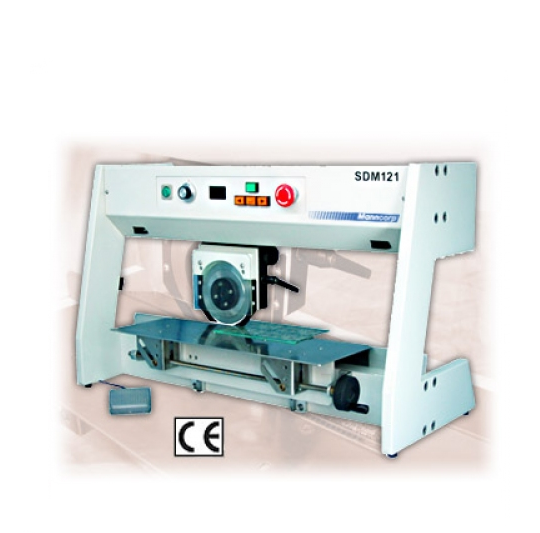

MANNCORP SDM-121 Motorized PCB Depaneler

PCB Thickness: 0.8 mm to 3.0 mm

Maximum Depaneling Length: 445mm (17.5") (Option 483mm (19"))

V-Scoring Lines:

Depth of scoring (A): ≥ 0.25 mm

Remaining PCB thickness (B): 1.0 mm max

Component from scoring (C): ≥ 1 mm

Scoring angle θ: ≥ 20˚ (typical)

Max. component height (D): 32 mm

Depaneling Mode: Motorized

Separating Speed: 200, 350, 400 or 450 mm/s

Production Rate: Moderate to high volume

Scoring Angle: 20˚

Minimum Component Distance from V-Groove: 1 mm

Maximum Component Height: 32 mm (1.26")

PCB Materials: FR4, CEM3, etc.

Processing table: 500 x 165 mm (19.7" x 6.5")

Dimensions (L x W x H): 750 mm x 346 mm x 465 mm (29.5" x 13.6" x 18.4")

Net Weight: 46 kg (102 lbs)

Shipping Weight: 75 kg (166 lbs)
