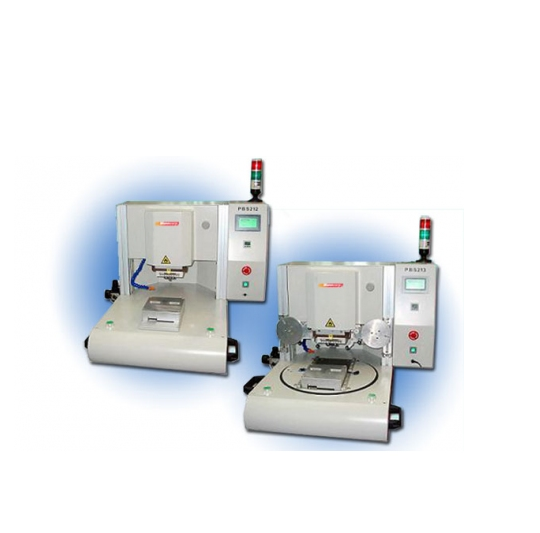

Manncorp PBS212 Hot Bar Soldering Equipment

Manufacturer: Manncorp - USA

Model: PBS212

Origin: China

Warranty: 12 months

General

Dimensions: (Without Pressure regulator, handle & lamp): 665mm (Depth) x 668mm (Width) x 557m (Height)

Weight50 Kg

Power Requirement: 110 VAC 50/60Hz, 2KVA

Air Supply Pressure: 4 – 6 Kg/cm²

Fixture Height: Maximum 50mm

Fixture Base Dimension: 150mm x 150mm

Table Actuation Type: PBS202/203: Manual; PBS212/213: Pneumatic

Gantry Opening Width: 400mm

Startup Operation: Two Hand Control

Sliding Stroke / Rotary Table Diameter: 200mm

Vacuum: 1 Set

Password: 6 digits (2-level)

Thermode Specifications

Force Range: 30N – 500N

Force Accuracy: ± 2 N

Actuation Type: Pneumatic

Thermode Stroke: 50mm

Thermode Length: Maximum 100mm

Pulsed-heat Specifications

Heating: Pulsed heating with High speed PID Control

Preheat Temperature: 50 – 500 °C (1 degree increment)

Heat Temperature: 50 – 500 °C (1 degree increment)

Preheat Time: 1 – 60 Second (1 second increment)

Heat Time: 1 – 60 Second (1 second increment)

Temperature Accuracy: ±2 °C

Cooling Temperature: 50 – 256 °C

CoolingAir Cooling

Programmable Profile: 3 (Non-volatile Memory)

Thermocouple Type: K Type

Communication Specifications

Communication Port: RS232
