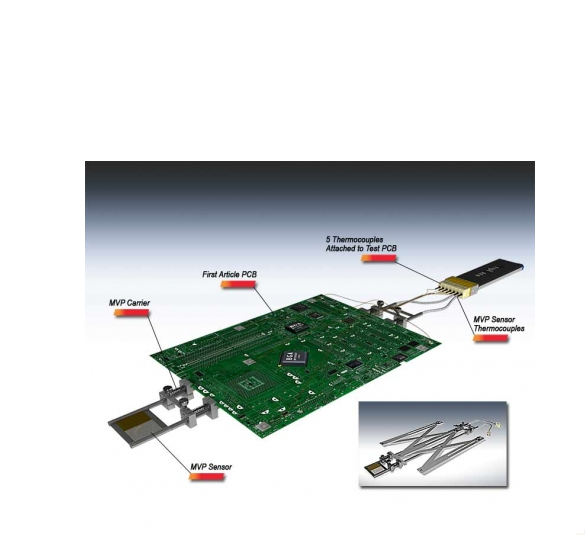

Manncorp KIC MVP Virtual Profiling Fixture

Manufacturer: Manncorp - USA

Model: MVP

Origin: China

Warranty: 12 months

Dimensions (L x W x H):559mm x 70mm x 25.4mm (22" x 2.75" x 1")

Weight:0.227kg (.5 lbs)

TC Temperature Rating:350°C

Carrier

Length:13.75" (349mm)

Minimum Width:3.5" (88.9mm)

Maximum Width:23.5" (597mm)

Weight:1.25 lbs (0.57Kg)

Programming PCB

Maximum Board Length:16" (407mm)

Maximum Board Width:24" (610mm)

Minimum Board Length:4.5" (114.3mm)

Minimum Board Width:3.5" (88.9mm)

Materials Used:Stainless steel, aluminum and other proprietary insulating materials
