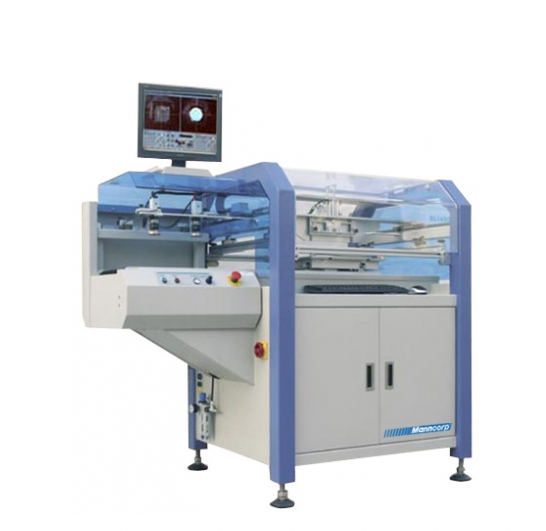

Manncorp MC1400 Automatic Stencil Printer

Manufacturer: Manncorp - USA

Model: MC1400

Origin: China

Warranty: 12 months

Printing Speed: 2 to 150mm/s (servo controlled)

Table Up / Down Speed: 0.2 to 4mm/s (servo controlled)

Vision Alignment System: Automatic (AT-Align system)

Stencil Frame Size (External Dimensions): 180mm x 310mm to 700mm x 700mm (7" x 12.2" to 27.5" x 27.5"); Thickness: 31.7mm (1.25" max.)

Printing Area:Max: 400 x 400mm; Optional max: 450 x 400mm; Optional max: 500 x 400mm

Board Size: Min: 20 x 20mm; Max: 400 x 400mm; Optional max: 450 x 400mm; Optional max: 500 x 400mm

Board Thickness: 0.8 to 8mm; Optional: 0.2 to 8mm

Underside Clearance: Max: 26mm

Printing Stroke: Max: 400mm

Squeegee Pressure: 0 - 15kg

Blade Type: Standard length: 250mm; Optional: 200mm, 300mm, 350mm, 400mm, 450mm, 500mm

XY Adjustment: ±5mm

Radial Adjustment: ±2°

Registration Repeatability: ±0.01mm

Support Tooling: Magnetic pin & vacuum block

Vision Alignment Resolution: 0.0085mm/ step

Vision Fiducial: Standard fiducial and any pads

Air & Power Requirements: 220VAC power, 75psi (5 bar) air

Dimensions (L x W x H): 51" x 35" x 51" (1300 x 900 x 1300mm)

Weight: 904lbs (410kg)
