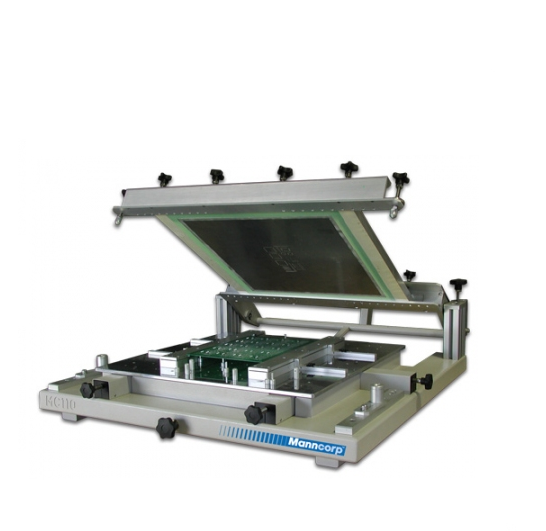

Manncorp MC110 Manual PCB Screen Printer

Manufacturer: Manncorp - USA

Model: MC110

Origin: China

Warranty: 12 months

Stencil Frame Size: 300 mm x 300 mm to 740 mm x 740 mm (11.8" x 11.8" to 29" x 29")

Work Area /Maximum PCB Size: 610 mm x 610 mm (24" x 24"); 610 mm x 1200 mm (24" x 48") optional

X and Y Axis Range: ± 13mm (± 0.5")

Theta Axis Range: ± 3.5°

Z Axis Range: 0-35 mm (0-1.4")

Underside Clearance: 25 mm (1")

Dimensions: 900 mm L x 1050 mm W x 300 mm H (35.5" L x 41.3" W x 11.8" H)

Net Weight: approx. 101 Kg (223 lbs.)

Shipping Weight: 144 Kg (318 lbs.)
