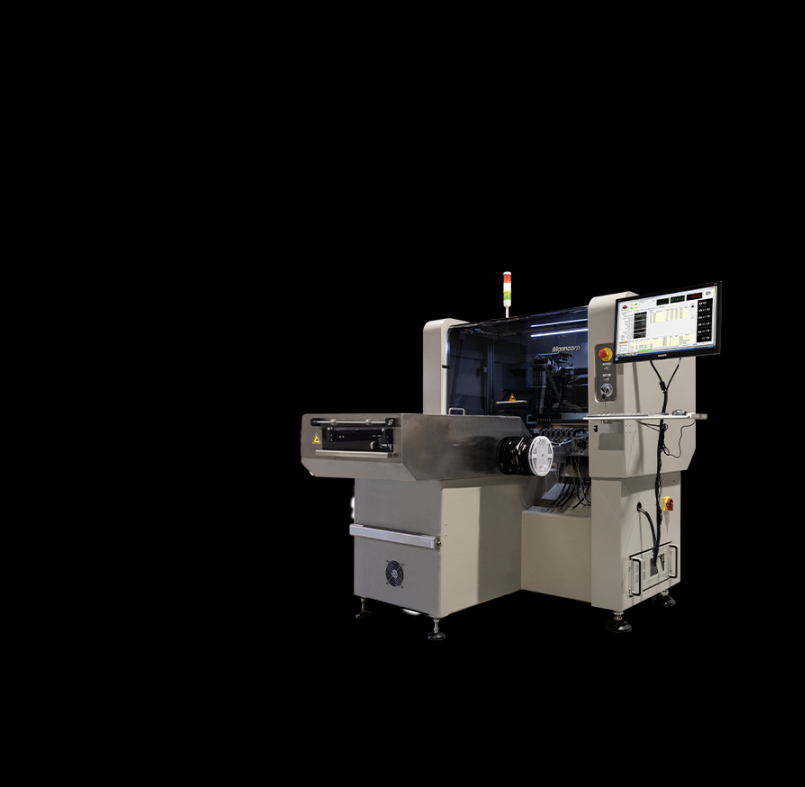

Manncorp MC-LEDV6 High Speed LED Pick & Place

Manufacturer: Manncorp - US

Model: MC-LEDV6

Origin: China

Warranty: 12 months

Placement Specifications

Number of Placement Heads:6

Placement Rate (IPC-9850)*:30,000 CPH

Placement Accuracy:50 µm, 3 Sigma

Minimum LED Size:1 mm × 0.5 mm (0.039"× 0.019")

Maximum LED Size:20 mm x 18 mm (0.78" x 0.70")

Capability for Other SMDs:Same maximum and minimum component size as LEDs

Pick Up Specifications

Tool Changer:Included

Number of Tools:18 (3 Per Head)

Accepts Additional Tool Changers:Yes

Integral Vacuum:Yes

Board Handling Specifications

Board Handling Method:Magnetic fixture worktable (standard) or inline conveyor (optional)

Max. Board Length:23.6" (600 mm) standard; 47.2" (1200 mm) optional; Full length assembled in a single pass

Max. Board Width:12.6" (320 mm); 11.8" (300 mm) with inline conveyor option

Board Thickness:0.008" to 0.12" (0.2 mm to 3.0 mm)

Fiducial Recognition/ Coordinate Correction:Yes

Bad Mark Detection:Yes

Feeder Capacity

Maximum Number of Feeder Ports:16

Tape Feeder Sizes:8, 12, 16 and 24 mm

Programming

Operating System:Windows®

PC, Keyboard, Mouse:Yes

MonitorFlat LCD

Teaching Camera:Yes

Numeric Data Entry:Yes

CAD Download:Yes

Step and Repeat for Matrix Boards:Yes

Bar Code Reader for Feeders & Packaging:Yes

Optimization Functions:Yes

Off-Line Programming:Yes

Mechanical Specifications

X Axis Drive Mechanism:High Speed Linear Drive

X Axis Encoding:Linear

Y Axis Drive Mechanism:Ball Screw

Y Axis Encoding:Rotary

X-Y Axis Resolution:0.01 mm (0.00039")

Z Axis Resolution:0.01 mm (0.00039")

Θ Axis Resolution:0.09°

Θ Axis Range of Motion:360°

Physical Specifications

Overall Dimensions(Approx. L x W x H):600 mm Length Board: 48.4" x 44.4" x 58.7" (1230 mm x 1130 mm x 1491 mm); 1200 mm Length Board: 103.5" x 44.4" x 58.7" (2630 mm x 1130 mm x 1491 mm)

Approximate Net Weight:0000 Kg (0000 lbs.)

Facility Requirements

Standard Voltage:220 VAC, Single Phase

Air Pressure:80 psi, 4 CFM, 5.5 Bar

Service and Support

Remote Diagnostics:Ethernet

Warranty (Major Components):1 Year
