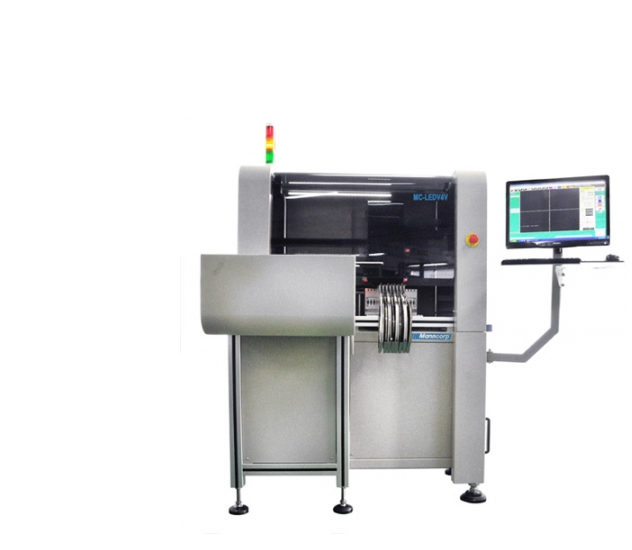

Manncorp MC-LEDV4 LED Pick & Place Machine

Manufacturer: Manncorp - US

Model: MC-LEDV4

Origin: China

Warranty: 12 months

Placement Specifications

Number of Placement Heads:4

Placement Rate (IPC-9850)*: 15,000 CPH

Placement Accuracy:30 µm, 3 Sigma

Minimum LED Size:0.6 mm × 0.3 mm (0.024 in × 0.012 in)

Maximum LED Size:8 mm x 8 mm x 5 mm (0.31" x 0.31" x 0.20") with on-the-fly vision

Capability for Other SMDs:Same maximum and minimum component size as LEDs

Pick Up Specifications

Tool Changer:yes

Number of Tools:6

Accepts Additional Tool Changers:Yes

Integral Vacuum:Yes

Board Handling Specifications

Board Handling Method:Magnetic fixture worktable (standard) or inline conveyor (optional)

Max. Board Length:23.6" (600 mm) standard; 47.2" (1200 mm) optional; Full length assembled in a single pass

Max. Board Width:11.8" (300 mm); 10.2" (260 mm) with inline conveyor option

Board Thickness:0.008" to 0.12" (0.2 mm to 3.0 mm); 0.008" to 0.197" (0.2 mm to 5.0 mm) with inline conveyor option

Fiducial Recognition/ Coordinate Correction:Yes

Bad Mark Detection:Yes

Feeder Capacity

Maximum Number of Feeder Ports:16

Tape Feeder Sizes:8, 12, 16 and 24 mm

Programming

Operating System:Windows® 7

PC, Keyboard, Mouse:Yes

MonitorFlat LCD

Teaching Camera:Yes

Numeric Data Entry:Yes

CAD Download:Yes

Step and Repeat for Matrix Boards:Yes

Bar Code Reader for Feeders & Packaging:Yes

Optimization Functions:Yes

Off-Line Programming:Yes

Mechanical Specifications

X Axis Drive Mechanism:Ball Screw

X Axis Encoding:Rotary

Y Axis Drive Mechanism:Belt with stepping motor

Y Axis Encoding:Rotary

X-Y Axis Resolution:0.02 mm (0.0008")

Z Axis Resolution:0.02 mm (0.0008")

Θ Axis Resolution:0.18°

Θ Axis Range of Motion:360°

Physical Specifications

Overall Dimensions (Approx. L x W x H):43.3" x 58" x 58.6" (1100 mm x 1473 mm x 1489 mm)

Approximate Net Weight:450 Kg (992 lbs.)

Facility Requirements

Standard Voltage:220 VAC, Single Phase

Air Pressure:80 psi, 4 CFM

Service and Support

Remote Diagnostics:Ethernet

Warranty (Major Components):1 Year

Video
