Manufacturer: Manncorp - US

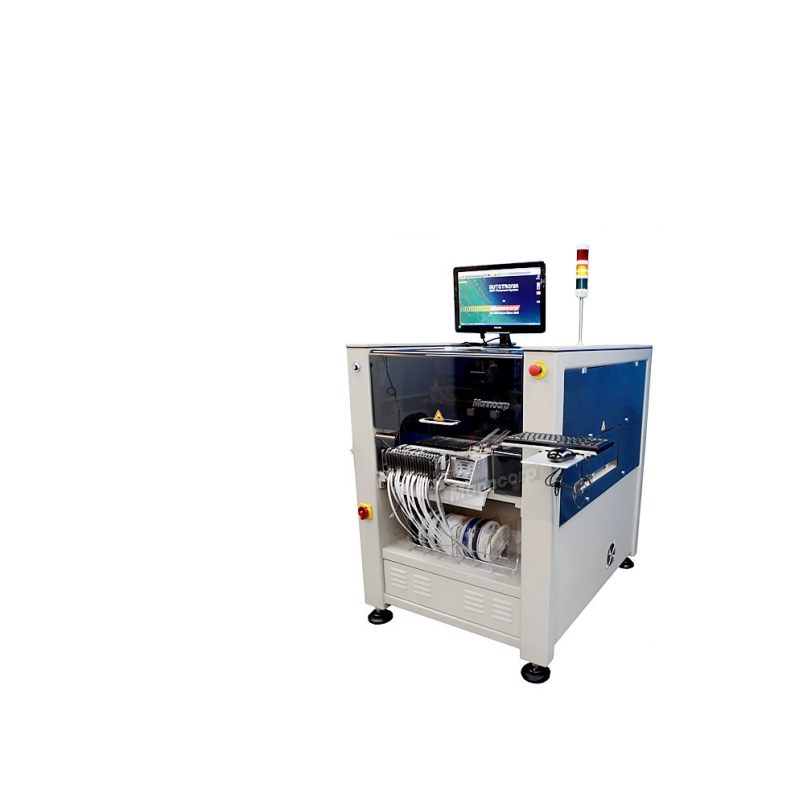

Model: MC-385V2V
Origin: China
Warranty: 12 months
Placement Specifications
Number of Placement Heads: 2
Placement Rate (IPC-9850)*: 5,500 CPH
Placement Rate (Max.): 8,000 CPH
Placement Accuracy: 30 µm, 3 Sigma
Minimum Component Size: 0201 (01005 optional)
Maximum Component Size: 100 mm x 150 mm (3.94" x 5.9")
Minimum Component Lead Pitch: 0.3 mm (0.012")
BGA/CSP Placement Capability: Yes - Standard
Alignment Method: Dual-Vision Alignment System
Pick Up Specifications
Tool Changer: Included
Number of Tools: 15
Accepts Additional Tool Changers: Yes
Integral Vacuum: Yes
PCB Specifications
PCB Loading Method: Manual, In/Out Conveyor or Inline Conveyor
Max. Placement Area: 350 mm x 435 mm (13.8" x 17.1")
Fiducial Recognition/ Coordinate Correction: Yes
Bad Mark Detection: Yes
Feeder Capacity
Maximum Number of Feeder Ports: 128
Programming
Operating System: Windows® Based
PC, Keyboard, Mouse: Yes
Monitor Flat LCD
Teaching Camera: Yes
Numeric Data Entry: Yes
CAD Download: Yes
Step and Repeat for Matrix Boards: Yes
Bar Code Reader for Feeders & Packaging: Yes
MIS and Optimization Functions: Yes
Off-Line Programming: Yes
Dispenser Specifications
Dispensing Head: Optional
Dispense Method: Time/Pressure
Dot Size / Placement Speed: Down to 0.5 mm / Up to 6,000 dots./hr
Mechanical Specifications
X-Y Axis Drive Mechanism: Ball Screw
X-Y Axis Drive Motors: AC Servo
X-Y Axis Encoding: Linear
X-Y Axis Resolution: 0.005 mm (0.0002")
X-Y Axis Repeatability: ±0.01 (10 µm)
Z Axis Drive Motor: DC Servo
Z Axis Encoding: Rotary
Z Axis Resolution: 0.02 mm (0.0008")
Θ Axis Drive Motor: DC Servo
Θ Axis Encoding: Rotary
Θ Axis Resolution: 0.045°
Θ Axis Range of Motion: 360°
Physical Specifications
Overall Dimensions(Approx. L x W x H): 1270 mm L x 990 mm W x 1320 mm H
(50" x 39" x 52")
Approximate Net Weight: 660 kg (1455 lbs.)
Facility Requirements
Standard Voltage: 220 VAC, 50/60 Hz, 11A
Air Pressure: 80 psi, 4 CFM
Service and Support
Remote Diagnostics: Ethernet
Warranty (Major Components): 1 Year
