Manncorp KIC K2 Thermal Profiler

Manufacturer: Manncorp - USA

Model: K2

Origin: China

Warranty: 12 months

Dimensions (L x W x H):

7-channel

206 x 60 x 17 mm (8.1" x 2.4" x 0.7")

With shield: 302 x 75 x 23 mm (11.9" x 3" x 0.9")

9-channel

206 x 75 x 17 mm (8.1" x 3" x 0.7")

With shield: 312 x 90 x 23 mm (12.3" x 3.5" x 0.9"

Accuracy:± 0.5˚C

Resolution:0.1˚C

Internal Operating Temp.:0˚C to 85˚C

Sample Rate:0.1 to 10 readings/sec

Data Points:224,640

PC Connection:USB 2.0 (Std-A/Mini-B)

Power Requirements:3 AAA batteries

Thermocouple Capacity:Type K, standard (7 or 9, depending on model)

Thermocouple Temperature Range:-150˚C to 1050˚C

Thermal Shield:Cool Touch Stainless Steel 7 or 9 channel

Mobile App Requirements:Authorized Android Device; WiFi or Bluetooth for data transfer

Computer Configuration: Minimum System Requirements:

Dual Core / 1 GHz processor PC w/2 GB RAM

2 GB available storage

Video 1024 x 768 resolution, 16-bit

1 available USB port for data download

1 available USB port for software key

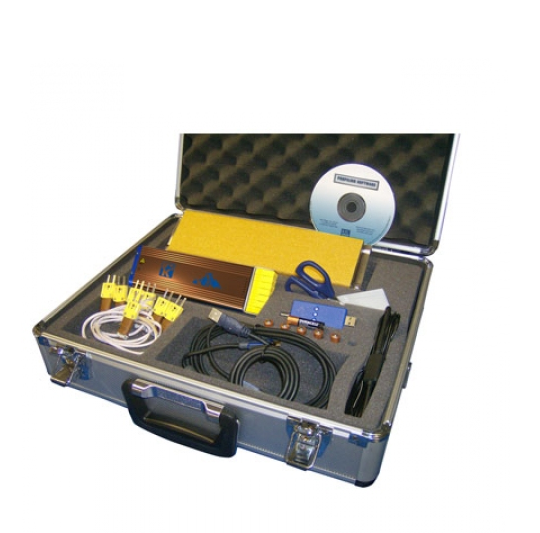

Included:

Profile setter

Thermal shield

Software CD

Software protection dongle

USB cable (A male/mini-B)

AAA batteries (6)

Scissors

Carrying case

Thermocouples

Electronic user manual

Electronic hardware guide

Gloves

Getting started guide

Calibration certificate
