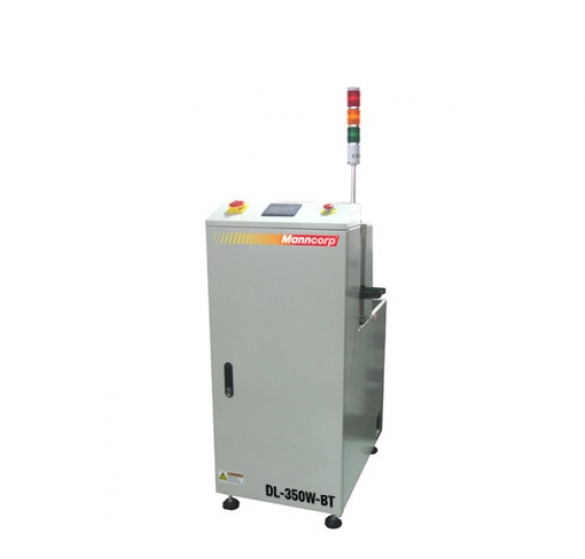

Manncorp DL-350W-BT Bare Board Loader

Manufacturer: Manncorp - USA

Model: DL-350W-BT

Origin: China

Warranty: 12 months

PCB Size:50 mm L x 50 mm W to 400 mm L x 350 mm W (1.97" L x 1.97" W to 15.75" L x 13.78" W)

PCB Stack Capacity:400 pcs. (0.6 mm thickness) or 200 mm (7.87") stack height

PCB Thickness:0.4 mm min. (0.016" min.); 2.5 mm max. (0.098" max.)

Conveyor Direction:Left to right (standard) or right to left (optional) operation

Conveyor:3 mm Edge Belt

Air Supply Pressure:5-6 Kg/cm2 (70-85 psi)

Air Consumption:30 l/min (1 CFM)

Voltage:110 VAC, 50/60 Hz

Power:150 VA max.

Machine Dimensions:500 mm L x 800 mm W x 1160 mm H (20" L x 31.5" W x 46" H)

Net Weight:170 Kg (375 lbs.)

Shipping Weight:220 Kg (485 lbs.)
