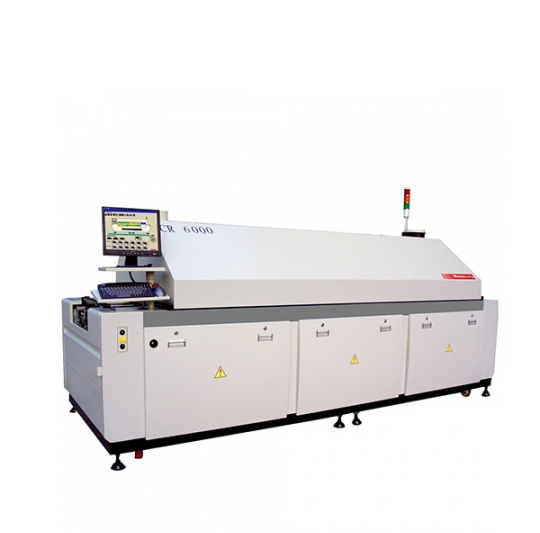

Manncorp CR-6000 6-Zone SMT Reflow Oven

Manufacturer: Manncorp - USA

Model: CR-6000

Origin: China

Warranty: 12 months

General

Lead Free Compatible:Yes

Tin Lead (SnPb) Compatible:Yes

Nitrogen Atmosphere Compatible:Optional

Double-Sided Board Processing:Yes

CE Compliance:Yes

SMEMA Compatible:Optional

Board Handling

Heated Board Width:22.4" (570mm)

Mesh Belt Conveyor:Standard

Mesh Belt Width:22.4" (570mm)

Process Clearance Above Mesh Belt:2.5" (65mm)

Chain-Driven Pin Conveyor:Standard

Pin Conveyor Max. Width:17.7" (450mm)

Pin Conveyor Min. Width:1.97" (50mm)

Auto Adjust Pin Conveyor:Optional

Clearance Above Conveyor Pins:1.18" (30mm)

Clearance Below Conveyor Pins:.98" (25mm)

Powered Center Support:Optional

Automatic Chain Lubrication:Yes

Conveyor Speed:16-71"/min (400-1800mm/min)

Conveyor Height: 35.4 ±0.8" (900mm ±20mm)

Conveyor Direction:Left to Right

Component Max. Height:30mm upper, 25mm lower

Heating

Forced Hot Air Convection:Yes

Number of Independently Controlled Heating Zones:12 total

6 upper, 6 lower

Total Heated Length:80.7" (2050 mm)

Number of Oven Convection Motors:12 Power: 120W x 12

Delta T:±2° C

Temperature Controls

PID (Proportional-Integral-Differential):Yes

Temperature Control Accuracy:±1° C

PCB Temperature Tolerance:±2° C

Temperature Range:Ambient -350° C

Ramping Time (from cold start):< 15 min

Profiling / Thermocouple Channels:3

Cooling

Standard Cooling Method:Air

Internal Chilled Water Cooling:Optional

Number of Cooling Zones:1 (2 with water cooling)

Cooling Tunnel Length:24.4" (620 mm)

Exit Temperature:40°C

Number of Cooling Fans:Three 45W or one 370W

Operating System and User Interface

Windows Compatible PC:Yes

Touch Screen LCD:No

Language:English

On-Screen Thermal Profiling and Parameter Setting:Yes

Print Capability:Yes

Data Logging & Event Recording:Yes

Alarms:Audible, Visual (Light Tower) and On-Screen Display

Dimensions & Physical Characteristics

Length:164" (4150 mm)

Width:59.4" (1510 mm)

Height:61" (1550 mm)

Net Weight:3329 lbs. (1510 kg)

Utilities

Power Supply:220 VAC 3-Phase

Frequency:60Hz

Operating Power Consumption:8-14 KW

Start-Up Power (Sequential Start-Up Mode*):25 KW

Current (Sequential Start-Up Mode*):83A

Total Power (Maximum):46 KW

N² Consumption:20-30 m3/h (with N² option)

Oxygen Density:300-1000 ppm (with N² only)

Number of Exhaust Vents:3

Exhaust Opening Size:8" diameter

Exhaust Venting Volume:400CFM per port

Conveyor & PC Power Supply:Uninterruptible Power Supply for Conveyor & PC

Hood Opening Mechanism:Automatic Raise and Lower
