Manufacturer: Manncorp - US

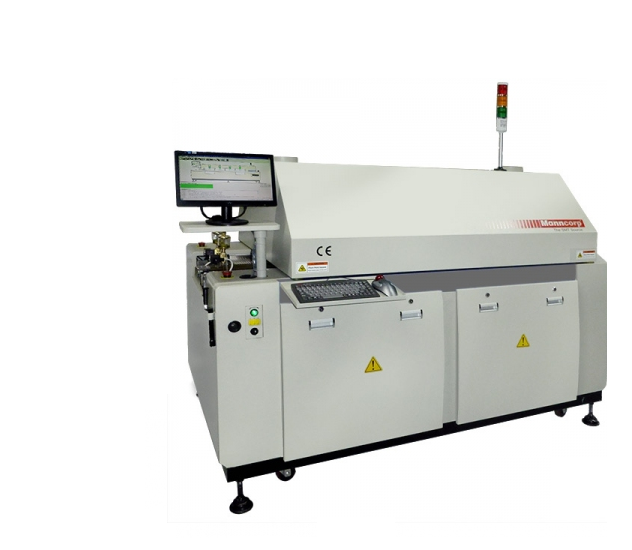

Model: CR-4000C
Origin: China
Warranty: 12 months
Lead Free: Yes
Nitrogen Available: No
Mesh Belt Width: 20" (500mm)
Pin Conveyor: 16" Max. (400mm)/ Hand Crank. Power Adjust (optional)
Conveyor Speed (per min); 7.8-35.4" (200-900mm)
SMEMA Compatible: Optional
Component Max. Height: 30mm upper, 25mm lower
Forced Convection: Yes
Number of Heating Zones: 4 Independently Controlled Topside Convection Zones; 2 Lower Convection Zones Controlled by Topside; 1 Cooling Zone
Heated Tunnel Length: 52" (1320 mm)
Delta T: ±2° C
PID*: Yes
Max Temperature: 300° C
Ramp Time (from cold start): < 15 min
Flux Management System: No
Control: PC
On-Board Profiling: Yes
Dimensions: 2000 mm L x 1200 mm W x 1450 mm H (79" L x 47.2" W x 57" H)
Weight: approx. 950 kg (2095 lbs.)
Power: 220 V, 3-Phase, 60 A, 19KW
Required Active Exhaust: 400CFM per port
# of Exhaust Vents: 2
Battery Backup: UPS Uninterruptible Power Supply for Conveyor & PC
Hood Opening Mechanism: Automatic Raise and Lower
