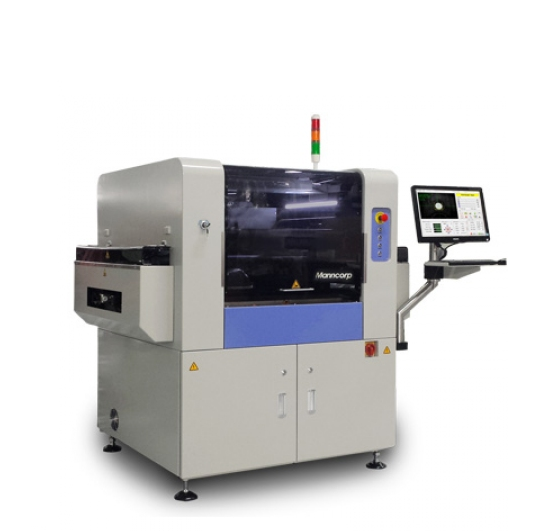

Manncorp AP660 Automatic Inline Stencil Printer

Manufacturer: Manncorp - USA

Model: AP660

Origin: China

Warranty: 12 months

Printing Speed: 20 to 120mm/s (servo controlled)

Vision Alignment System: Automatic (AT-Align system)

Stencil Frame Size (External Dimensions): 660 x 660 mm to 900 x 900 mm (26" x 26" to 35" x 35")

Board Size: Min: 50 x 50mm; Max: 580 x 580mm

Board Thickness: 0.4 to 5 mm

Board Warpage: Max PCB 1% of diagonal line

Blade Type: Metal 60°

XY Adjustment: ±10mm

Radial Adjustment: ±2°

Registration Repeatability: ±0.01mm

PCB Fixation: Screw clamping system and vacuum

CCD FOV: 5 x 7 mm

Vision Fiducial: Standard fiducial and any pads, 0.5 to 3 mm

Air & Power Requirements: 220VAC 50-60 Hz power, 75psi (5 bar) air

Dimensions (L x W x H): 57.8" L x 59.2" W x 61" H (1470 x 1506 x 1550 mm)
