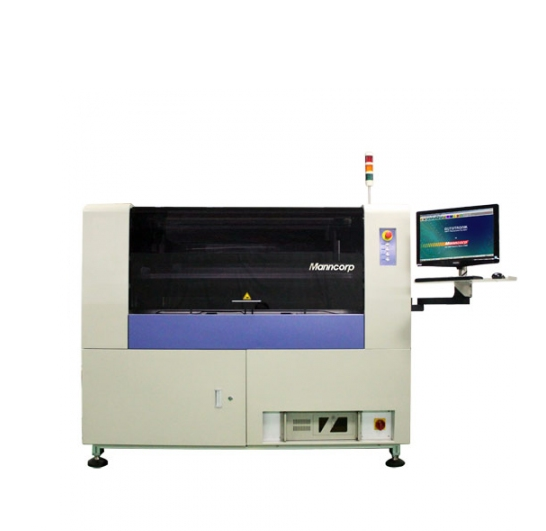

Manncorp AP660 AP1200 Inline Large Board Stencil Printer

Manufacturer: Manncorp - USA

Model: AP1200

Origin: China

Warranty: 12 months

Printing Speed: 20 to 120mm/s (servo controlled)

Vision Alignment System: Automatic (AT-Align system)

Stencil Frame Size (External Dimensions): 300 x 300 mm to 560 x 1500 mm (11.8" x 11.8" to 22" x 59")

Board Size: Min: 100 x 50mm; Max: 1200 x 300mm

Board Thickness: 0.4 to 5 mm

Board Warpage: Max PCB 1% of diagonal line

Blade Type: Metal or plastic, 45° or 60°

XY Adjustment: ±10mm

Radial Adjustment: ±2°

Printing Accuracy: ±0.04mm

Registration Repeatability: ±0.01mm

PCB Fixation: Screw clamping system and vacuum

CCD FOV: 5 x 7 mm

Vision Fiducial: Standard fiducial and any pads, 0.5 to 3 mm

Air & Power Requirements: 220VAC 50-60 Hz power, 75psi (5 bar) air

Dimensions (L x W x H): 91" x 67" x 74" (2300 x 1704 x 1878 mm)

Weight: 1918 lbs (870 kg)
