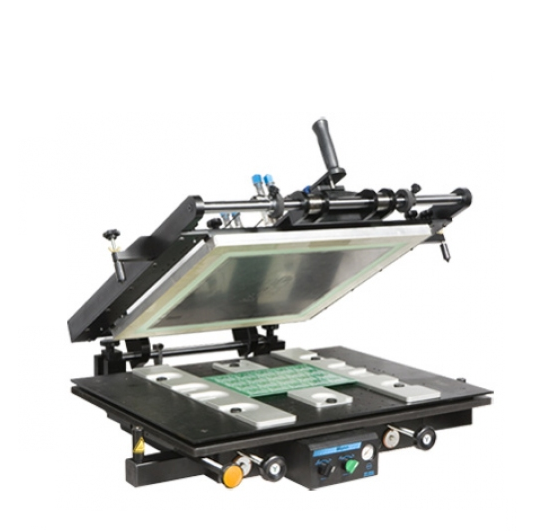

Manncorp 5500 Dual Squeegee SMD Stencil Printer

Manufacturer: Manncorp - USA

Model: 5500

Origin: China

Warranty: 12 months

Stencil Frame Size: 300 mm x 300 mm to 600 mm x 600 mm (12" x 12"** to 24" x 24"); **12" x 12" Stencil requires 9" Squeegees

Work Area /Maximum PCB Size: 356 mm x 430 mm (14" x 17")

X and Y Axis Range: ±13 mm (±0.5")

R Axis Range: ±5.0°

Z Axis Range: 0-19 mm (0" - .75")

Underside Clearance: 25 mm (1")

Air Pressure: 80 psi

Dimensions: 840 mm L x 920 mm W x 350 mm H (33.1" L x 36.2" W x 13.7" H)

Net Weight: approx. 75 Kg (165 lbs)

Shipping Weight: approx. 78 Kg (172 lbs)
