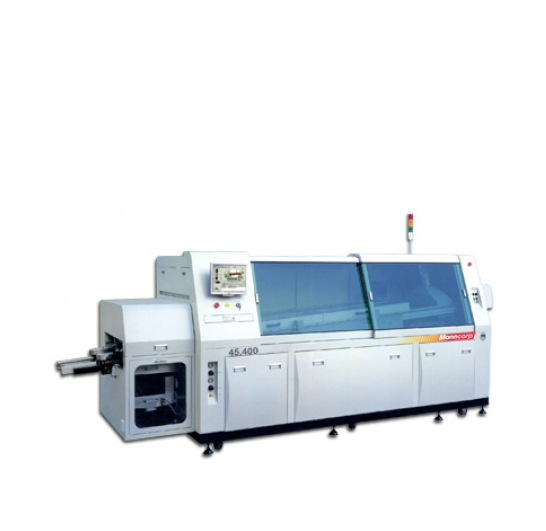

Manncorp 45.400 Wave Soldering Machine

Manufacturer: Manncorp - USA

Model: 45.400

Origin: China

Warranty: 12 months

Wave Width: 410 mm (16")

Wave Height: 10 mm (0.4")

Preheat Length:1800 mm (71")

Conveyor Width:50 - 400 mm (2" - 15.75")

Maximum PCB Size: 400 mm x 400 mm (15.75" x 15.75")

Conveyor Speed:0.5 - 2.2 m/min (20" - 87"/min)

Conveyor Angle:4° to 7° (adjustable)

Solder Capacity: 420 Kg (925 lbs. approximate weight for lead free solder)

Solder Temperature: Ambient - 300°C (Ambient - 572°F)

Machine Dimensions: 4700 mm (185") L x 1350 mm (53") W x 1680 mm (66") H

Net Weight: 1600 kg (3527 lbs.)

Preheat Power: 220V, 8.4 KW x 3

Conveyor Motor Power: 220V, 60W

Exhaust Power: 220V, 3-phase, 1500 W

Cooling System Power: 220V, 0.36 KW x 1 + 45 W x 2

Wave Pump Power: 220V, 3-phase, 0.18 KW x 2

Solder Heat Power: 220V, 2 KW x 6

Total System Power: 39.5 KW

Input Power: 220V, 3-phase, 50/60 Hz

Air Supply: 0.4 MPa (60 psi)
