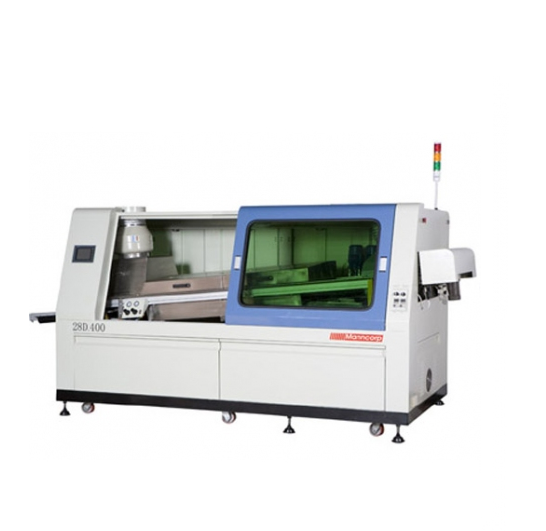

Manufacturer: Manncorp - USA
Model: 28.400
Origin: China
Warranty: 12 months
Wave: Dual Wave
Wave Width: 410 mm (16")
Wave Height: 10 mm (0.4")
Preheat Length: 1300 mm (51")
Conveyor Width: 50 - 400 mm (2" - 15.75")
Maximum PCB Size: 400 mm (15.75") width
Conveyor Speed: 0.5 - 2.2 m/min (20" - 87"/min)
Conveyor Angle: 4° to 7° (adjustable)
Fluxing: Internal spray fluxer; Dual spray fluxing optional
Solder Pot: Single lead-free pot standard; Two pots—one lead-free, one standard—optional
Solder Capacity: 370 kg (816 lbs. approximate weight for lead free solder)
Solder Temperature: Ambient - 300°C (Ambient - 572°F)
Control Method: Color Touch Screen / PLC
Machine Dimensions: 3500 mm (138") L x 1390 mm (55") W x 1600 mm (63") H
Net Weight: 990 kg (2180 lbs.)
Exhaust Fan Requirements: 250 cfm (Solder Pot Exhaust) 10" Diameter; Spray Fluxer Exhaust Fan built into machine
Air Pressure Requirements: 0.4 MPa (60 psi)
Total Power Consumption: 220 V, 3-Phase, 50/60 Hz 23.7 KW, 70A
