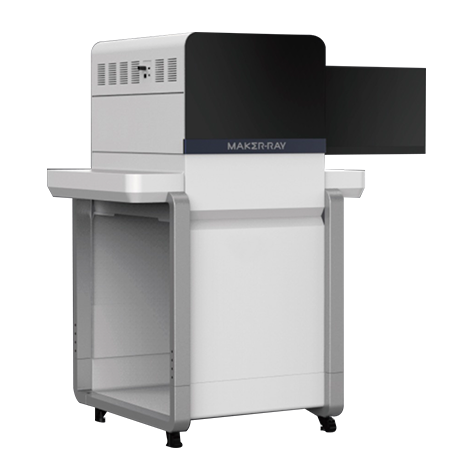

Maker-Ray AIS203-29C On-line PCBA AOI For DIP Components

PCB Size：50x50mm ~ 520x380mm

Camera: 29MP color

Light source ：W + strip light source on four sides

FOV ： 520 * 380mm

Resolution: 80um

Communication method: SMEMA

CPU Intel i7

Display Card: Nvida . Standalone GPU Acceleration Card

Memory ： 8GDDR, 256G SSD + 2T Mechanical HD

Power supply ： AC 220，200W

Dimensions (L * H * W) ： 715 * (1315-1700) * (760-1210) mm

Net weight：100KG

It captures board image in real time by high precision color industrial camera.

Adopt Convolutional Neural Network (CNN) algorithm to process images.

Judge defects of components intelligently.

Defect Type：Wrong part, missing part, reverse polarity and other defects of DIP element
