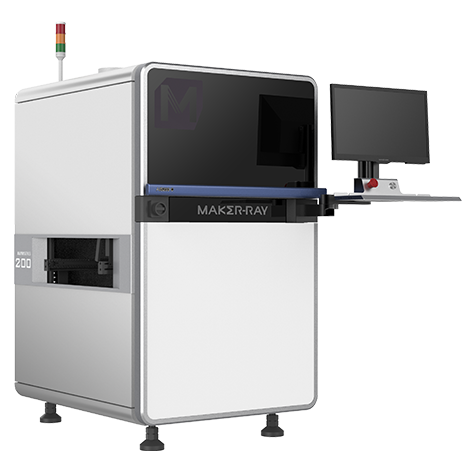

Maker-Ray AIS203-12C* On-line PCBA AOI For DIP Components

PCB Size：50x50mm~510x460mm

Camera：12MP color

Light source：White

FOV：400*300mm

Resolution：90um

Communication method：SMEMA

Intel i5 CPU

Display card: Nvida Independent GPU Accelerator Card

Storage：8GDDR,256G SSD+2T Mechanical HD

Power Supply：AC 220，300W

Dimension：

(Rail height:750mm)L*H*W: 880*1540*1140mm

(Rail height:900mm)L*H*W: 880*1690*1140mm

Net Weight：400KG

It captures board image in real time by high precision color industrial camera.

Adopt Convolutional Neural Network (CNN) algorithm to process images.

Judge defects of components intelligently.

Defect Type：Wrong part, missing part, reverse polarity and other defects of DIP element
