Control Unit
Control Panel: 10.4” color touch-screen Interface, (Resolution: 800 x 600 pixels)
Communication Port: Remote control through Ethernet, Analog AUX port for system extension
Storage Program: Up to 59,994 programs for different kinds of condition.
Data Internal Storage: Up to 100 data files.
Data External Storage Interface: USB port
Cabinet Material: Front panel: ABS / Housing: Painted iron
Dimension:
Overall Diameter 350mm;
Overall Height with Condenser 683 mm;
Overall Height without Condenser 448 mm
Dimension (with vessel holder) 430mm (L) x 730mm (W) x 780 mm (H)
Rated Voltage: 110V~/ 220V~ ; 50/60 Hz
Aeration: Inlet Gas Flow-meter 0, 1 – 10LPM
Temperature
Heating: Thermostat system: Built-in heat exchanger, 550W heater/water circulation pump
Cooling: Automatic cooling water valve
Range: 5°C (41°F ) above coolant up to 60°C (140°F )
Resolution: 0.1°C
Control Mode: Manual or programmable 15-step PID control.
Agitation
Drive: Removable top brushless motor
Speed Range: 0, 1 – 60 rpm
Resolution: 1rpm
Control Mode: Manual or programmable 15-step PID control.
Impeller:
1. Broken type (FS-A-IM305)
2. Anchor type (FS-A-IM408)
3. Spiral type (FS-A-IM507)
(Select one from the above type, and only anchor impeller can be used with pH and DO probes)

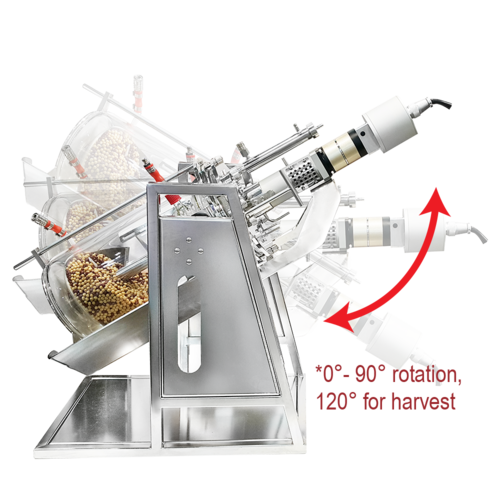

Vessel Swing
Angle Range: Normal operation: 0°~90°, adjustable time interval
Harvest mode: 0°/ 120°
Control Mode: Programmable control
Solid state fermentation (SSF) can be used for enzyme, antibiotics, biofuel, and organic acid production in the food, pharmaceutical, cosmetic, industries, etc. One of the features for Solid state bioreactors is to create low water level cultivating conditions for fungus, mold, filamentous fungi, and some bacteria growth. Winpact Solid State Fermentation system is designed for the laboratory scale research to get excellent results. It is featured with a 10.4" color touch screen, user-friendly interface and 4 built-in peristaltic pumps on the Linux based operation system. An automatic vessel angle control mechanism provides an outstanding mixing efficiency for solid state material research. This system is suitable for both aerobic and anaerobic fermentation with three kinds of impellers available (Broken, Anchor and Spiral type).
