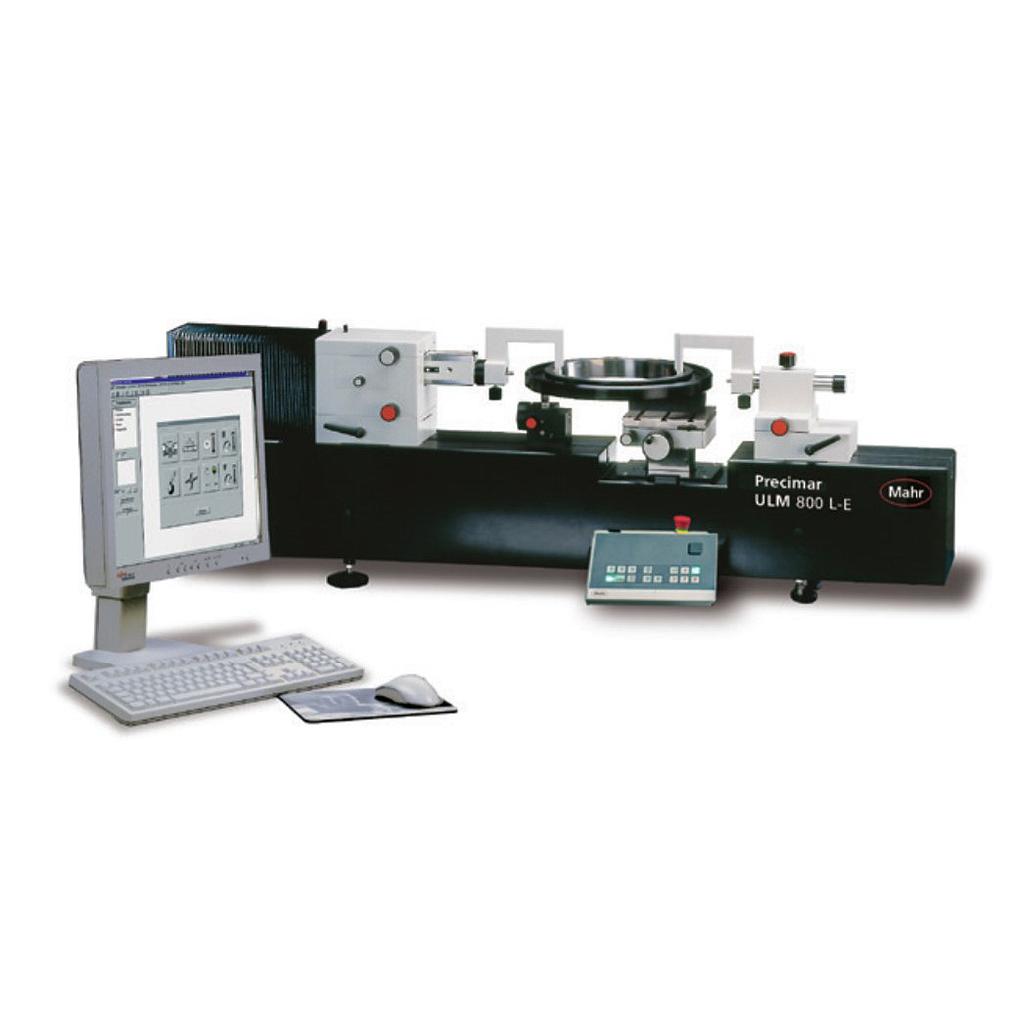

Mahr ULM 800 L-E Calibration Measuring Instruments (outer 0-830mm,inner 0.5-670mm)

APPLICATIONS

Calibration of:

• Plain plug gages and gage rings

• Setting gage rings

• Snap gages

• Spherical gage blocks, internal micrometers

• Gage blocks

• Thread gages

• Taper thread gages

• Gear gages

• Taper gages

• Dial indicators

• Dial comparators

• 2-point bore gages

• Outside micrometers

• 2-point inside micrometers

Direct measuring range [mm]:0-525

Measuring range for outer measurement [mm]:0-830

Measuring range for inner measurement [mm]:0.5-670

Measuring uncertainty MPEE1(L in mm) [µm]: ≤ (0.1+L/2000)

Repeatability [µm]: ≤ 0.05

Measuring forces [N]: 0.2 ; 1.0 to 4.5 ; 11

Device length [mm]: 1500

Mass [kg]: 220

ACCESSORIES

• Large number of accessory kits and modular

components for completing a wide variety of

measuring tasks, including the measurement of:

• Thread gages

• Taper gages

• Conical thread gages

• Gears

• Factory calibration or DAkkS/DKD calibration can

be additionally offered for this measuring station
