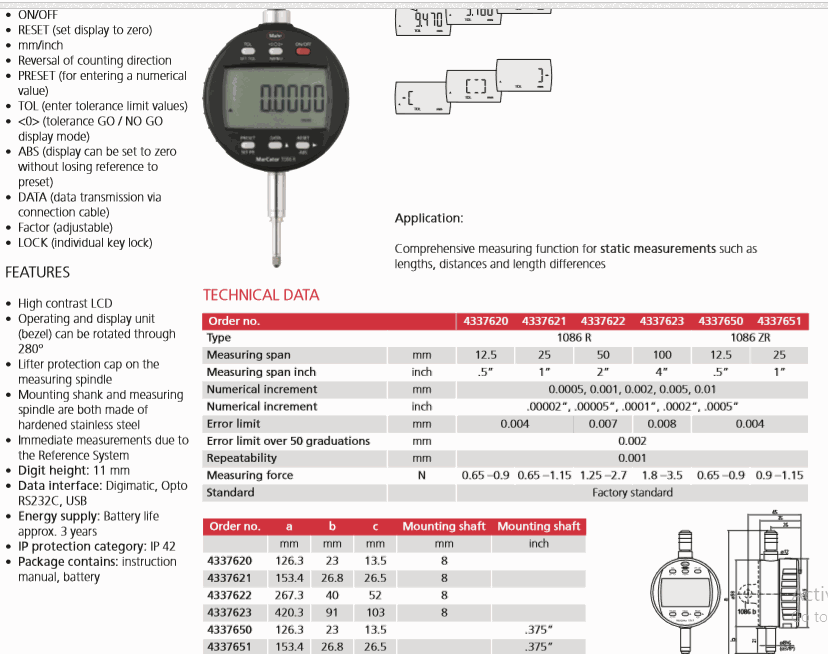

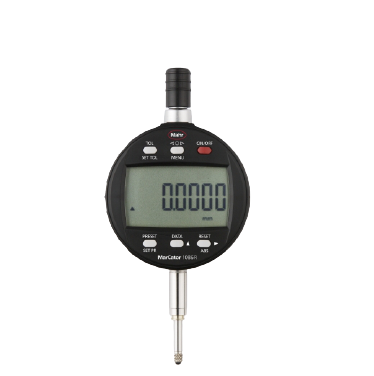

Product type 1086 R
Measuring span: 50mm/2”
Numerical increment: 0.0005, 0.001, 0.002, 0.005, 0.01mm/.00002”, .00005”, .0001”, .0002”, .0005”
Error limit mm: 0.007
Error limit over 50 graduations: 0.002mm
Repeatability: 0.001mm
Measuring force N: 1.25 – 2.7
Standard:Factory standard
Package contains: battery, instruction manual
Accessories:
Adjustable back
Screw back
Rack back
Adjustable back for 75B
Post back
16 EXu Data connection cable USB (2 m), type 16 EXu
Digimatic data cable (2 m), type 16 EWd
Data connection cable RS232C (2 m), type 16 EXr
Protective cap for 1075 R / 1086 R / 1087 R, type 1086 s
Lug back, type 1086 b
Cable release (12.5 + 25 mm), type 1085 a
Pneumatic lifting (12.5 + 25 mm), type 1082 p
Adapter bush (.375” / 8 mm), type 940
Battery 3 V, type CR 2450
Pneumatic lifting (50 + 100 mm), type 1082 p
