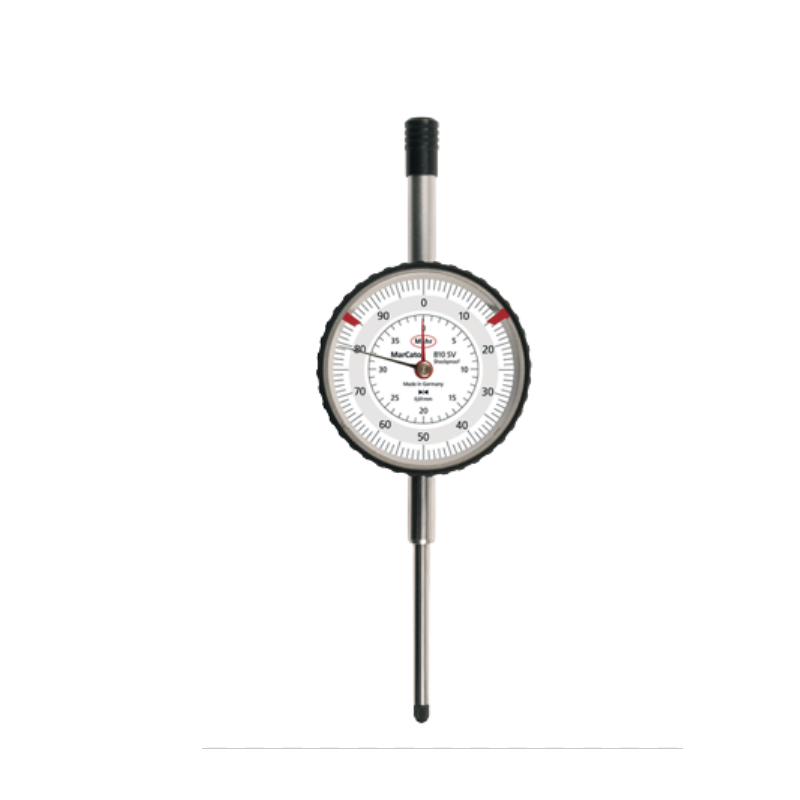

Mahr 4321000KAL Mechanical Dial Indicators (810 SV, 40mm)

Measuring span: 40 mm

Product type: 810SV

Graduation value: 0.01mm

Standard: Factory standard

Type of dial face: 0-100

Range per rev.: 1 mm

Error limit measuring range: 25 µm

Error limit 1 revolution: 15 µm

Error limit 1/2 revolution: 10 µm

Error limit 1/10 revolution: 5 µm

Measuring value hysteresis fu: 6 µm

Repeatability fw: 3 µm

Overtravel: 0.1 mm

Scale diameter: 50 mm

Dial color: White

Dimensions: a 58 mm | b 24.2 mm | c 8.7 mm | d 52 mm | e 169 mm | f 22 mm | g 45 mm
