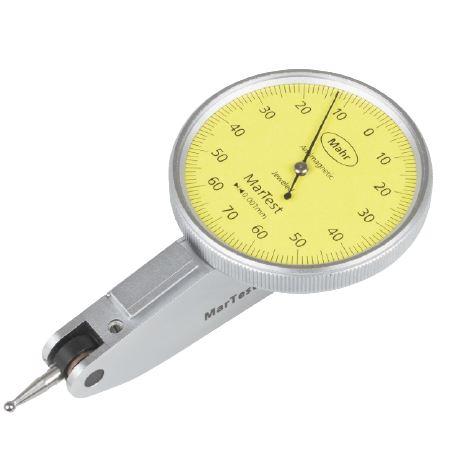

Product type: 800 SGE
Measuring range: ± 0.07mm
Graduation value: 0.001mm
Measuring surface: carbide
Scale diameter: 38mm
Type of dial face: 70– 0– 70
Dial color: Yellow
Measuring force N: 0.2
Range per rev.: 0.14mm
Deviation range fe µm: 3
Total deviation range fges µm: 4
Hysteresis fu µm: 2
Partial measuring span ft µm: 2
Repeatability fw µm: 1.5
Standard: factory
Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8
Accessories:
Stylus ø 1.0 mm, carbide, l = 9.1 mm, type 800 te
Stylus ø 2.0 mm, carbide, l = 9.1 mm, type 800 te
Stylus ø 3.0 mm, carbide, l = 9.1 mm, type 800 te
Stylus ø 2.0 mm, ruby, l = 9.1mm, type 800 ter
Spanner
FEATURES
For high-precision measurements
• High-contrast dial face, sealed with O-ring
• Mineral glass viewing panel for best protection: - against cracking, scratching or damage caused by hot shavings - optimum resistance to solvents
• Matt chrome-plated protective casing with three integrated dovetail guide rails
• Shockproof measuring mechanism
• Anti-magnetic model
• Automatic adjustment to the contacting direction ensuring infallible readings
• Ball bearing mounted double lever
• Friction clutch overload protection
