Measuring range: ± 0.4mm

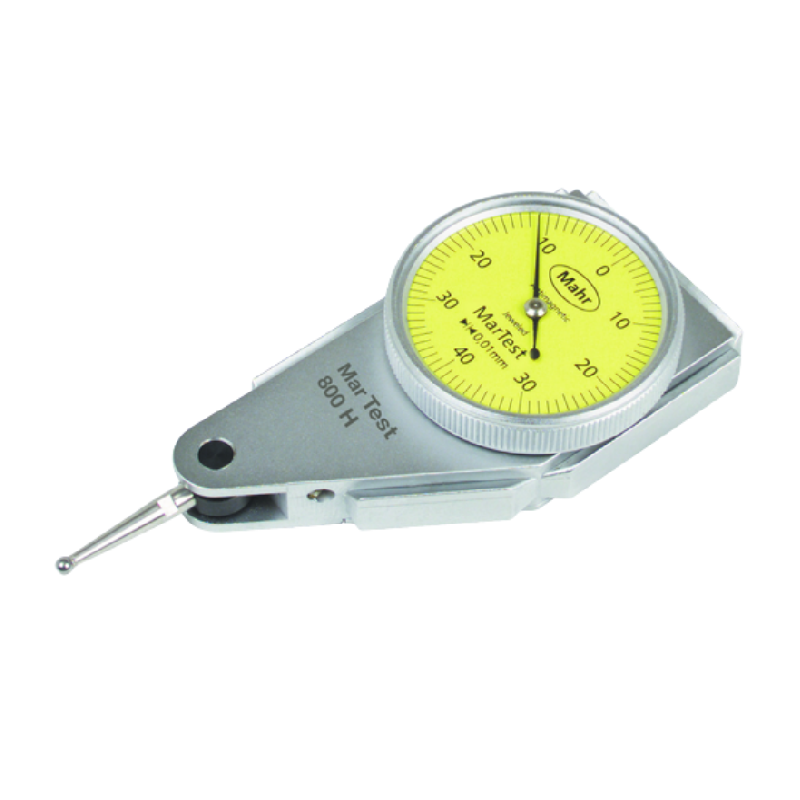

Product type: 800 H
Graduation value: 0.01 mm
Standard: DIN 2270
Type of dial face: 40-0-40
Range per rev.: 0.8 mm
Span of error fe: 10 µm
Total span of error fges: 13 µm
Measuring value hysteresis fu: 3 µm
Partial measuring range ft: 5 µm
Repeatability fw: 3 µm
Measuring force: 0.25 N
Scale diameter: 28 mm
Dial color: Yellow
