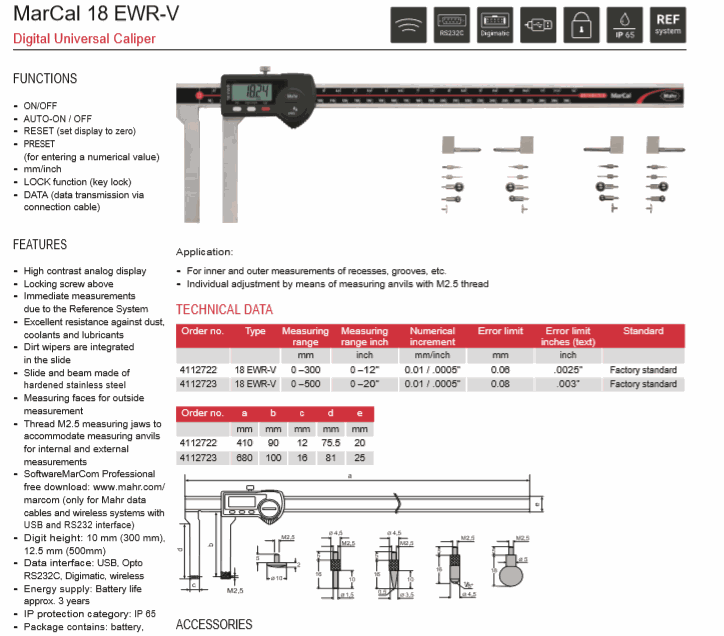

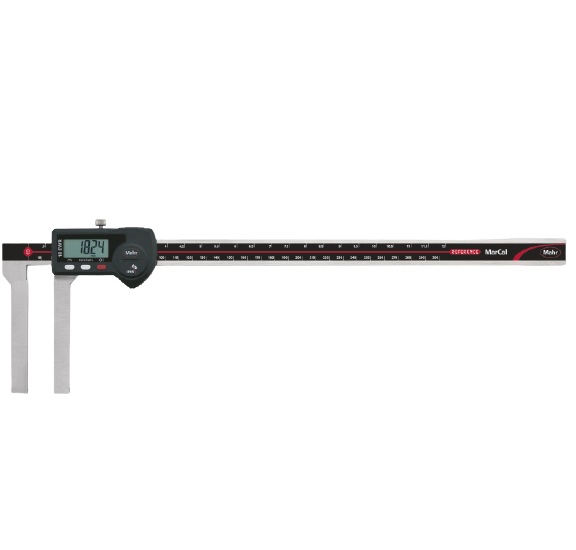

Type: 18 EWR-V
Measuring range mm: 0-300
Measuring range inch: 0-12
Numerical increment: 0.01mm/.0005”
Error limit mm: 0.06
Error limit inches: .0025
Standard: factory standard
Accessories:
Receiver, type e-Stick
Transmitter for e-Stick, type 16 EWe
16 EXu data connection cable USB (2 m), type 16 EXu
Data connection cable RS232C (2 m), type 16 EXr
Battery 3 V, CR 2032
Digimatic data cable (2 m), type 16 EWd
Replacement measuring anvil: Spherical plate Ø 10.0 mm
Replacement measuring anvil: Cylindrical stylus Ø 1.5 mm x 10 mm
Replacement measuring anvil: Tip, radius 0.5 mm x 10 mm
Replacement measuring anvil: Sphere diameter 1/8” length 16 mm
Replacement measuring anvil: Ball dia. 7.0 mm
Replacement measuring anvil: Sphere Ø 10.0 mm
