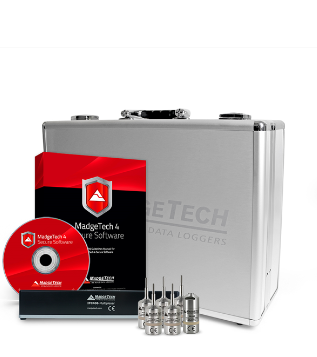

Madgetech AVS140-6 Autoclave Validation Data Logging System

HiTemp140

Temperature

Temperature Sensor: 100 Ω Platinum RTD

Temperature Resolution: 0.01°C (0.02°F)

Calibrated Accuracy

± 0.1°C / ± 0.18°F (20°C to 140°C / 68°F to 284°F)

± 0.3°C / ± 0.54°F (-20°C to 19.99°C / -4°F to 67.98°F)

± 0.4°C / ± 0.72°F (-40°C to -20.01°C / -40°F to -4.02°F)

Probe Temperature Range: -200°C ~ 260°C (-328°F ~ 500°F)

General

Memory: 32,700 Readings

Reading Rate: 1 reading every 1 s up to 1 reading every 24 hrs

Baud Rate: 125,000

Wrap-Around: Yes

Start Modes:

Software programmable immediate start

Delay start up to 18 months in advance

Stop Modes: Manual or Timed (specific date and time)

Real-Time Recording: May be used with PC to monitor and record data in real-time

Password Protection:

An optional password may be programmed into the device to restrict access and configuration options.

Data may be read without the password

Battery Type: 3.6 V high-temperature lithium battery (included), user-replaceable

Battery Life: 1 year typical at 1 min reading rate at 25°C (77°F)

Material: 316 Stainless Steel

Weight: 4.2 oz (120 g)

Dimensions (Probe)

HiTemp140-1

1.1 in x 0.125 in dia. (0.188 in transitional dia.)

27 mm x 3.2 mm dia. (4.8 mm transitional dia.)

HiTemp140-2: 2.0 in x 0.188 in dia. (51 mm x 4.8 mm)

HiTemp140-2-TD

2.0 in x 0.125 in dia. (0.188 in transitional dia.)

51 mm x 3.2 mm dia. (4.8 mm transitional dia.)

HiTemp140-5.25: 5.25 in x 0.188 in dia. (133 mm x 4.8 mm dia.)

HiTemp140-5.25-TD

5.25 in x 0.125 in dia. (0.188 in transitional dia.)

133 mm x 3.2 mm dia. (4.8 mm transitional dia.)

HiTemp140-7: 7.0 in x 0.188 in dia. (178 mm x 4.8 mm dia.)

Dimensions (Body)

HiTemp140-1: 1.6 in x 0.970 in dia. (40 mm x 24.6 mm dia.)

HiTemp140-2, 5.25, 7: 1.9 in x 0.970 in dia. (48 mm x 24.6 mm dia.)

IP Rating: IP68

Submersible: Yes

Operating Environment: -40°C - 140°C (-40°F - 284 °F), 0% RH - 100% RH, Non-condensing

Required Interface Package: IFC400

Approvals: CE

Kit Specifications

Operating Environment: -200°C - 250°C (-328°F - 482°F) (time limited), 0% RH - 100% RH

Dimensions

Flush Top: 2.75 in x 2.0 in dia.(69.85 mm x 51 mm dia.)

Vented Top: 4.3 in x 2.0 in dia.(109.2 mm x 50.8 mm dia.)

Material (Enclosure): PTFE

Weight (Not Including Data Logger)

Flush: 6.7 oz (190 g)

Vented: 9.5 oz (270 g)

PR140

Pressure

Pressure Sensor: Semiconductor Strain Gauge

Pressure Range: 0 bar - 5 bar (0 PSIA - 72.5 PSIA)

Pressure Resolution: 0.0001 bar (0.0015 PSIA)

Pressure Calibrated Accuracy

± 0.03 bar (± 0.435 PSI)

+20°C - 140°C (68°F - 284°F)

Pressure Response Time: 0.1 ms (10% - 90% FSR)

General

Memory: 32,700 readings; software configurable memory wrap

Reading Rate: 1 s to once every 24 hours, selectable in software

Baud Rate: 125,000

Start Modes: Software programmable immediate start or delay start up to six (6) months

Real-Time Recording: May be used with PC to monitor and record data in real time

Calibration: Digital calibration through software

Calibration Interval: Yearly calibration recommended

Calibration Date: Automatically recorded within device

Battery Type: 3.6 V high-temperature lithium battery included, user replaceable

Battery Life: 2 years typical, 1 min reading rate at 25°C (77°F)

Data Format: PSIG, inHg, mmHg, bar, atm, Torr, Pa, kPa, MPa

Time Accuracy: ± 1 min/month (at 20°C - 30°C)

Computer Interface: USB (interface cable required); 115,200 baud

Software: XP SP3/Vista/Windows 7/Windows 8

Material: Stainless Steel

Dimensions

Flush Top: 2.0 in x 1.0 in dia. (50.8 mm x 25.4 mm dia.)

NPT Pressure Port Top: 2.29 in x 1.0 in dia. (58.2 mm x 25.4 mm dia.)

IP Rating: IP68

Submersible: Yes

Operating Environment: -20°C - 140°C (-4°F - 284°F), 0% RH - 100% RH

Note: The PR140 may be used above 60°C for up to 8 hrs, per 24 hr period.

Approvals: CE
