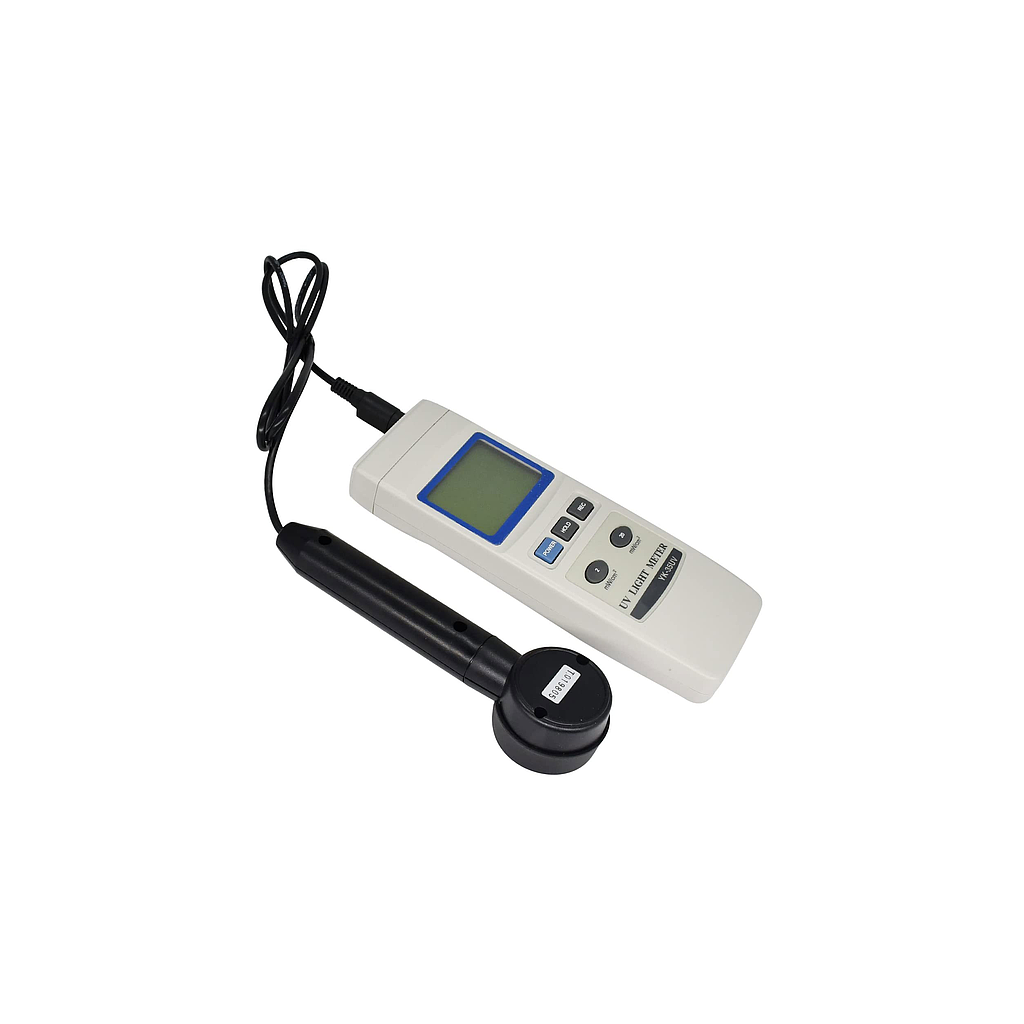

LUTRON YK-35UV UV Light Meter

Display Screen:

LCD Screen Size: 51 mm x 37 mm, Maximum Reading 1999

Measurement Range / Resolution:

Range 1: 2 mW/cm² : 1.999 mW/cm² x 0.001 mW/cm²

Range 2: 20 mW/cm² : 19.99 mW/cm² x 0.01 mW/cm²

UV Sensor Spectrum: 290 nm to 390 nm

Accuracy: ± (4% of reading + 2 digits)

Sensor Structure: Exclusive UV photodetector with cosine correction filter

Buttons: Power button, Hold button, REC button, Range button, Zero button

Sampling Time: Approximately 1 second

Overload Indication: Display shows "----"

Weight: 383 g / 0.55 LB (including battery)

Output: RS 232 / USB PC serial interface

Operating Temperature: 0°C ~ +50°C

Operating Humidity: < 85%RH

Power Supply: 9V DC battery, 006P, MN 1604 (PP3) or equivalent, 9V DC adapter

Power Consumption: Approximately 6mA DC

Dimensions:

Main Unit: 200x68x30 mm (7.9x2.7x1.2 inch)

Sensor Probe: 45 mm diameter x 32 mm

Probe Handle: 125 mm x 24 mm diameter

Included Accessories:

Instruction Manual

UV Sensor Probe
