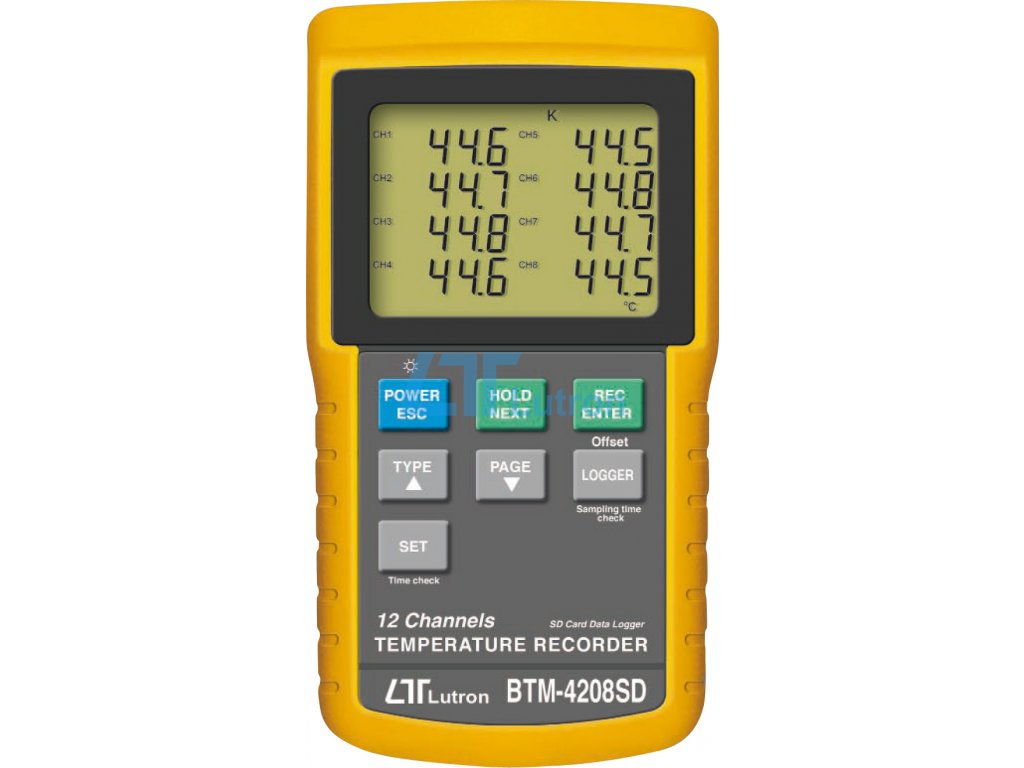

LUTRON BTM-4208SD TEMPERATURE RECORDER (12 Chanel)

* 12 channels Temperature recorder, use SD card to save the data along with time information, paperless.

* Real time data logger, save the 12 channels Temp. measuring data along the time information ( year, month, date, minute, second ) into the SD memory card and can be down load to the Excel, extra software is no need. User can make the further data or graphic analysis by themselves.

* Channels no. : 12 channels ( CH1 to CH12 ) temperature measurement.

* Sensor type : Type J/K/T/E/R/S thermocouple.

* Auto datalogger or manual datalogger.

* Data logger sampling time range : 1 to 3600 seconds.

* Type K thermometer : -100 to 1300 degree C

* Page select, show CH1 to CH8 or CH9 to CH12 in the same LCD.

* Display resolution : 1 degree/0.1 degree.

* SD card capacity : 1 GB to 16 GB

* Jumbo LCD with green light backlight, easy reading.

* Record function to present the max. and min. reading.

* RS232/USB PC COMPUTER interface.

* Power Supply : AAlkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 8 PCs

or DC 9V adapter input. ( AC/DC power adapter is optional ).

Accessories Included : Instruction manual, Type K Temp. probe, TP-01, SD Card ( 2 GB ), Hard carrying case
