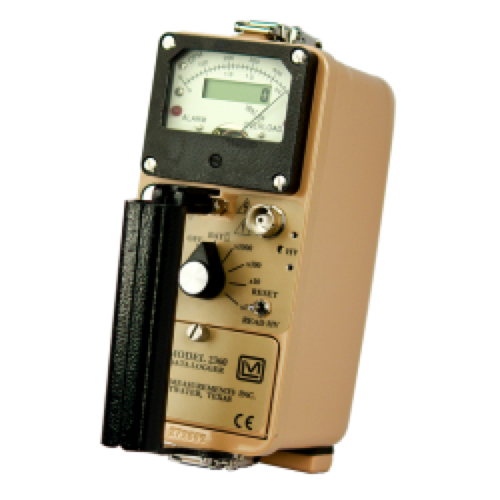

LUDLUM 2360 General Purpose Data Logger (550 Data Points)

Indicated Use: Alpha-Beta discrimination, Data logging

Compatible Detectors: Dual phosphor scintillation, Gas proportional

Linearity: Reading within 10% of true value

Meter Dial: 0 - 500 cpm, 0 - 2 kV, BAT OK, OL (overload); (others available)

Scaler: 6-digit LCD display with 0.64 cm (0.25 in.) digits, overflow arrow, colons to indicate when a count is in process, and backlight

Data Logger: Capable of storing up to 550 individual data points with identifiers for each point (all data is stored in non-volatile memory allowing batteries to be removed without loss of data)

Response Time: 7 seconds on x1 range, 2 seconds on all others

High Voltage: Adjustable from 200 to 2000 Vdc (can be read on meter)

Temperature Range: -20 to 50 °C (-4 to 122 °F)

May be certified for operation from -40 to 65 °C (-40 to 150 °F)

Battery Life: Typically 250 hours with alkaline batteries (battery condition can be checked on meter)

Data Output: 9-pin RS-232 port for connection to PC for data download and adjustment of setup parameters. A one meter RS-232 to USB adapter cable is included. PC interface software is available for download.

Size (H x W x L): 16.5 x 8.9 x 21.6 cm (6.5 x 3.5 x 8.5 in.)

Weight: 1.6 kg (3.5 lb), including batteries
