Application:

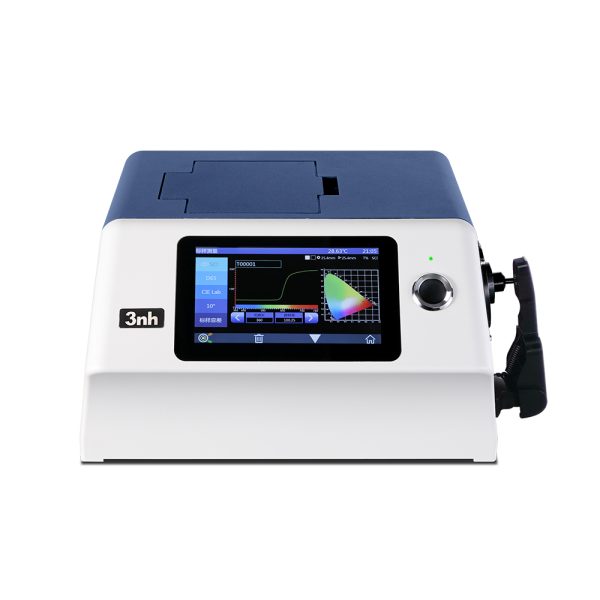

YS6060 benchtop spectrophotometer is used to do precise color analysis and transmission in laboratories. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, science institutes, laboratories.
Specification:
Integrating Sphere Size: Φ154mm
Light Source: 360 nm to 780 nm, Combined LED Light, 400nm cut-off light source, 420nmCut-off light source
Spectrophotometric Mode: Concave Grating
Sensor: 256 Image Element Double Array CMOS Image Sensor
Wavelength Range: 360-780nm
Wavelength Interval: 10nm
Semiband Width: 10nm
Measured Reflectance Range: 0-200%
Observer Angle: 2°/10°
Illuminant: D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Measuring Time: About 2.4s (Measure SCI & SCE about 5s)
Inter-instrument Error: Φ25.4mm/SCI, Within ΔE*ab 0.12 (Average for 12 BCRA Series II color tiles)
Dimension: L*W*H=370x300x200mm
Weight: Approx. 9.6kg
Power: AC 24V, 3A Power adapter power supply
Display: 7-inch TFT color LCD, Capacitive Touch Screen
Data Port: USB & Bluetooth & Print serial port
Data Storage: Standard 5000 Pcs, Sample 40000 Pcs
