Working power supply: AC (220±10%) V, (50±1) Hz
The number of adsorption columns: 4 can be washed at the same time 4 glass adsorption columns, each way is separately controlled.
Temperature control accuracy: 50±1℃
Leaching solvent flow rate: 1mL ~ 15mL arbitrary setting
Control mode: laptop
Introduction
The instrument conforms to NB SH/T 0509 “Determination of four Components of Petroleum Asphalt”, SY/T 0537 “Determination of Wax Content in Crude oil”, SY/T 7550 “Determination of wax gum asphaltene content in crude oil”, JTG E20-T 0618 “Test of Chemical
Components of Asphalt (four-component method)”, SH/T 0266 “Petroleum asphaltene content determination Method”, and RIPP10-90 “Petroleum Chemical Analysis Method” on the determination of four components of heavy oil, etc. This instrument is a new multi-functional product, which can be applied to the separation of heavy oil four components, petroleum asphalt four components, petroleum distillate saturated hydrocarbons and aromatics (chromatography), wax content in crude oil, oil wax, gum, asphaltene content analysis.

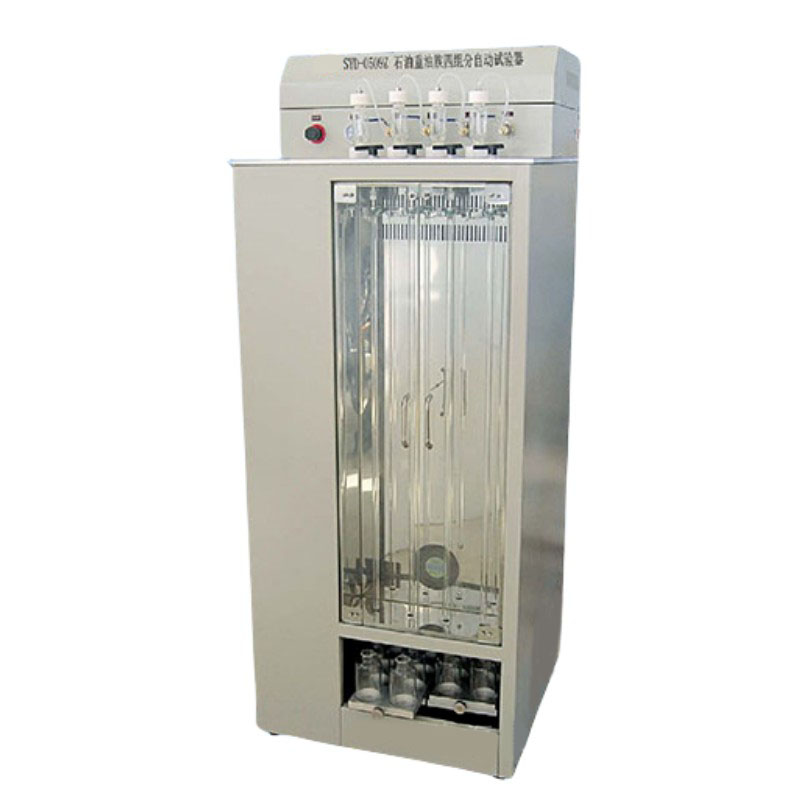

The instrument is divided into three parts: SYD-0509Z four-component automatic tester for heavy oil family (main engine), SYD-0509Q adsorption column automatic loading and cleaning tester (auxiliary machine 1), SYD-0509H solvent automatic evaporation recovery tester (auxiliary machine 2).
Main technical features
1, all Chinese interface, the washing process is fully automatic.
2, can set a number of washing procedures, according to the need to set the sequence of each solvent washing, volume, rate and other parameters, each time choose the corresponding washing procedures, the instrument automatically in accordance with the set parameters to work.
3, four kinds of solvents can be used to wash the sample, each solvent after washing, automatically replace the bottle, you can also choose several of them according to the need for washing.
4. The peristaltic pump is used to accurately control the flow rate and volume of the solvent. Each way of the washing system is equipped with a peristaltic pump, which can correct the speed of each way of the peristaltic pump.
5, the temperature in the column box can be set according to the needs of the user, PID automatic temperature control.
