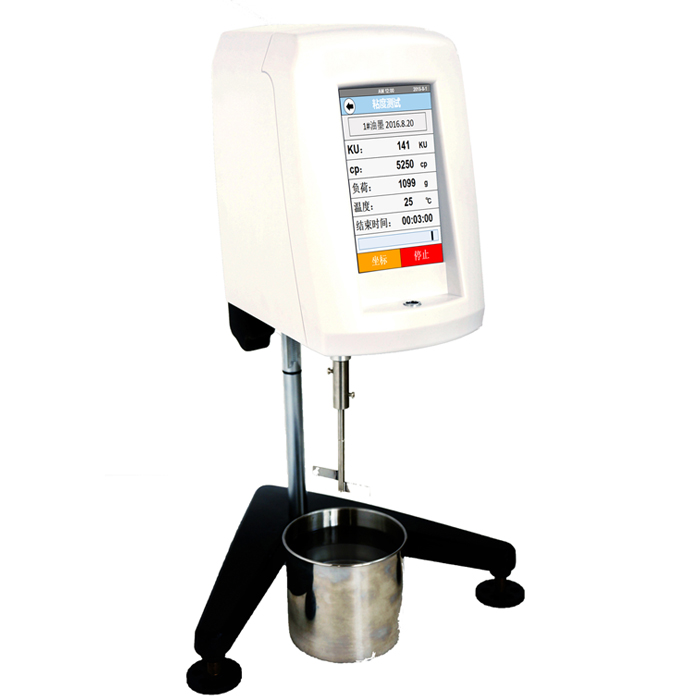

Control / display mode: 5 inch color touch screen
Speed(r/min): 200±0.1
Measuring range:
40.2ku – 141.0ku
32g – 1099g
27 – 5250cp
Measurement accuracy: ±3%
Measurement reproducibility: ±1.5%
Measuring container: 1 pint
Timing: flexible setting according to sample situation
Temperature measurement: standard temperature probe interface (need to match temperature probe)
Self built measurement procedure: can save 30 sets (including sample, measurement time, date)
Save the measurement results: 30 sets of data (including ku, g, cp, time, curves, etc.) Can be saved
Viscograph: real time display viscosity curve
Print: data, curves can be printed (need to choose printers)
Data output interface:
Usb interface: insert u disk to copy data directly (optional)
Rs232 interface: connectable computer
Thermostatic unit: options (including special viscometer thermostatic bath, thermostatic cup)
Working power supply: 110v / 60hz or 220v / 50hz
Outline dimension: 300 × 300 × 450(mm)
Main features：
1.The operation interface is simple and clear, and the viscosity test can be done quickly and conveniently through the creation of test program and data analysis;
2.Viscosity measurement accuracy: automatic calibration by computer, high precision, small error;
3.The display rich content: in addition to KU, G, CP of the three commonly used parameters, and temperature measurements for the full-scale value percentage (graphics), viscosity curve, range overflow alarm, timing, clock date, etc.;
4.Timing measurement: very practical. We measured the paint, ink, paint is a typical non Newtonian fluid, the viscosity and temperature on the outside (except the temperature rise, but also with the decrease of viscosity) measurement time length. The paint has ink and paint is shear thinning characteristics, the longer the time of measurement of viscosity the smaller, if the viscosity of samples of the same class are comparable, the measurement time must be the same;
5.USB interface,insert U disk to copy measurement data directly（optional）
6.Self built 30 sets of test procedures: can be compiled, can quickly call;
7.Access to 30 sets of measurement data and curves; stored in the viscometer, the data include sample name, KU, G, CP value, measurement date, etc.;
8.The real-time display of the viscosity curve: on the screen at any time watch;
9.Can connect micro printer and computer: there are two interfaces, serial connection computer, parallel port connection printer;
10.The front level: the rotor is vertically placed in the sample, it is important to the accuracy of measurement data. Through the observation level in front of the three foot level, which can conveniently adjust the base level of the bubble will be adjusted to the middle position (the current domestic Stormer viscometer on the market are not level regulating device);
11.Rich optional accessories: temperature probe, viscometer thermostat, constant temperature cup, printer, standard viscosity sample, etc.；
