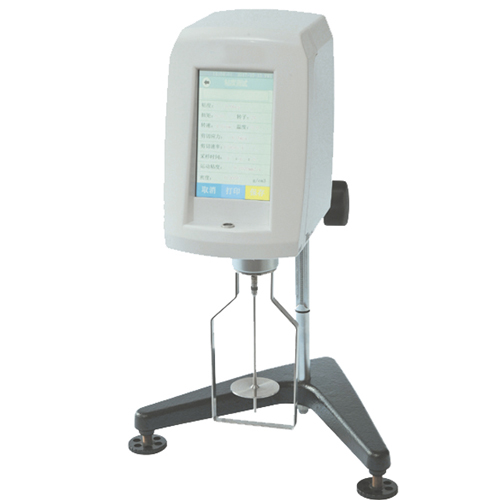

Widely used in paint, paint, cosmetics, ink, pulp, food, oil, starch, solvent adhesive, latex, biochemical products and other high viscosity industries
Control / display mode: 5-inch color touch screen
Speed (r/min): 0.3 - 100 infinitely variable speed, a total of 998 speed options
Measuring range: 800 - 104 million mPa.s (measure viscosity below the lower limit, need to choose R1 rotor)
Rotor: R2 - R7 (6, marking) R1 (optional)
Sample dosage: 500ml
Measurement error (newtonian liquid): ±1%
Repetition error (newtonian liquid): ±0.5%
Display shear response / shear rate: standard configuration
Timing function: standard configuration
Display viscosity curve: shear rate - viscosity / temperature-viscosity / time-viscosity
Kinematic viscosity: density of sample to be input
Temperature measurement: standard temperature probe interface (need to select temperature probe)
Autoscan: automatically scan and recommend the best combination of rotor and speed
Maximum measurement range: automatic display of the selected combination of rotors and rotational speeds in a measurable range of viscosity
Self-built measurement program: save up to 30 groups (including rotor, speed, temperature, time, etc.)
Preservation of measurement results: up to 30 sets of data can be stored (including viscosity, temperature, rotor speed, shear rate, shear stress, time, density, kinematic viscosity, etc.)
Print: data, curves (marked with print interface, printer to be purchased)
Data output interface: RS232
Constant temperature component: selection (all kinds of viscometer special constant temperature slot, constant temperature cup)
Source: wide voltage work (110V / 60Hz or 220V / 50Hz)
Outline dimension: 300 x 300 x 450 mm
