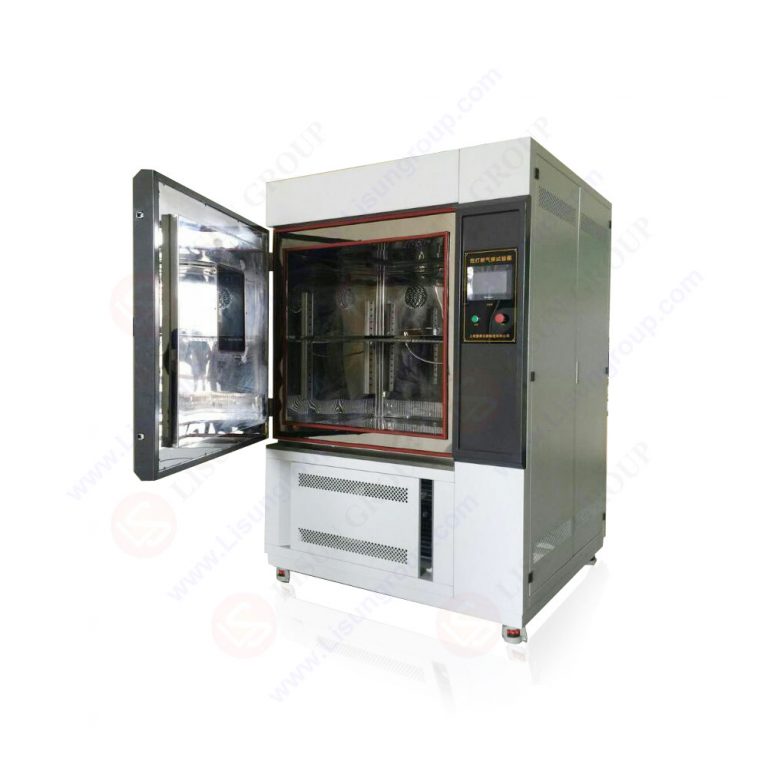

Lisun XD-80LS Xenon Lamp Aging Test Chamber (water-cooled Xenon, 80℃, 98%RH, 290~800nm)

Working size: 800*800*800mm

Temperature range: RT+10℃～80℃ Tùy chỉnh

Temperature deviation: ±2℃; Temperature fluctuation: ±0.5℃

Humidity range: 65%-98%RH; Humidity fluctuation: ±3%

Wind speed: ≤1.5m/s Sample rack speed: 5-12r/min(Adjustable)

Rainfall time: 0～9999min(Adjustable)

Xenon lamp source: Water-cooled lamp

Quantity of Xenon lamps: 1 PCS

Xenon Lamp Power: 6000W

Distance between sample holder and lamp: 200~375 mm

Illumination time: 1～9999h、m、s continuously adjustable

Temperature control instrument adopts high precision digital microcomputer integrated controller; Accuracy: 1℃(Display range)

Resolution: ±0.1℃

Temperature sensor: PT100 platinum resistance thermometer

Control Way: Heat balance temperature and humidity control way

Temperature and humidity control adopts P.I.D+S.S.R system and channel coordinated control

Equipment feature: with light, rain, temperature, humidity, wind, etc. climate

Xenon lamp radiation intensity: 550w/m²; Wavelength: 290~800nm
