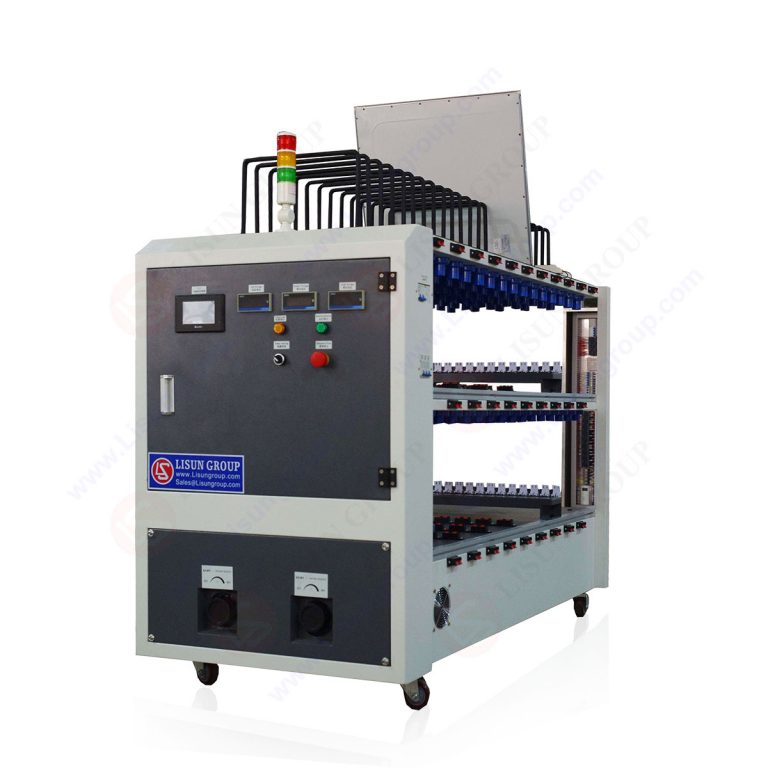

Lisun SY2036 Aging and Life Test Rack (AC220V, 50/60HZ, 12KVA)

• Input Power supply: AC220V, 50/60HZ, 12KVA Min (110V is optional)

• Built-in transformer: 0-250V 5KVA and 0-300V 5KVA (Other power is optional)

• Maximum power for EUT: 5KVA and 12A (Other power is optional)

• EUT and Number: 112pcs B22, 112pcs E27. 36pcs T5/T8/T12 Tube. 32pcs LED panel (Other EUT can be designed according to customer request)

• ON/OFF test: Can be set on the touch screen with program

• Test cycles: 0~99999（Adjustable）

Datasheet

Features

• PLC program and English/Chinese touch screen, easy for the operation and maintenance.

• Built in over-current protection system. When the load’s current becomes too high, the device will give alarm and switch off the output to protect the transformer.

• Contains 3 independent floors and can work separately, it can test different kinds of EUT.
