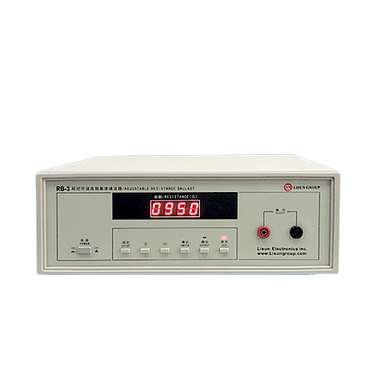

Lisun RB-3 Adjustable Resistance Ballast (0~0.700A, 100~2047Ω)

RB-3 is designed according to the following standard requirements: IEC 60929 (GB/T15144), double-ended fluorescent lamp adoptting the IEC 60081 (GB/T10682) and the single-ended fluorescent lamp adoptting the IEC 60901 (GB/T17262)

The RB-3 works with HFP-800 (High Frequency Power Supply ) and LPS-3 (Auxiliary Power Supply) to be an IEC Standard Test System which used to test the Frequency Fluorescent Lamp such as T5 Tube, please click here to learn the more details

Specifications:

• Available current range: 0~0.700A

• Impedance range: 100~2047Ω

• Impedance tolerance range: ±0.5% (Under calibration current). ±1% (Any current between 50% calibration current)

• Within the range of impedance: series inductance of impedance is less than 0.1mH, parallel connection capacitance is less than 1nF
