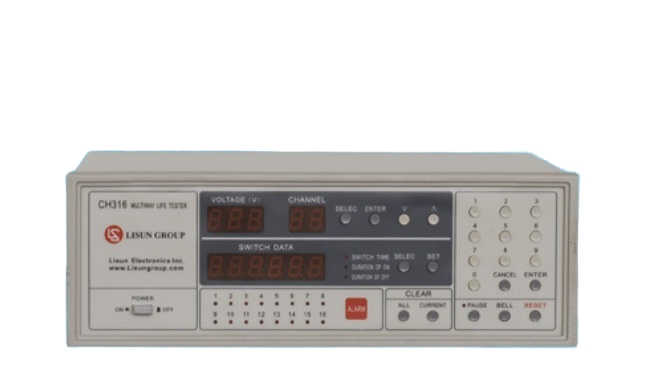

Lisun CH316 Multiway Life Tester (30mA~1000mA, 0~1,000,000 times)

Features:

• Measure 16 samples at the same time, evaluate and record the life of each sample.

• Very flexible: Samples can be added and changed at anytime.

• The life of each sample is readable at anytime.

• The switch ON/OFF time is adjustable (Test period is min 1s).

• Automatically remember the test result when the power is off, and resume the old measurement when power is on.

• Sound and light alarm when the products were failed.

Specification:

• Current range under normal load: 30mA~1000mA (RMS). Invalid if the load current is smaller than 30mA.

• Tested sample life range: 0~1,000,000 times.

• Switch on or switch off time can be set at: 1 second ~ 99 hours 59 minutes 59 seconds.

Download datasheet
