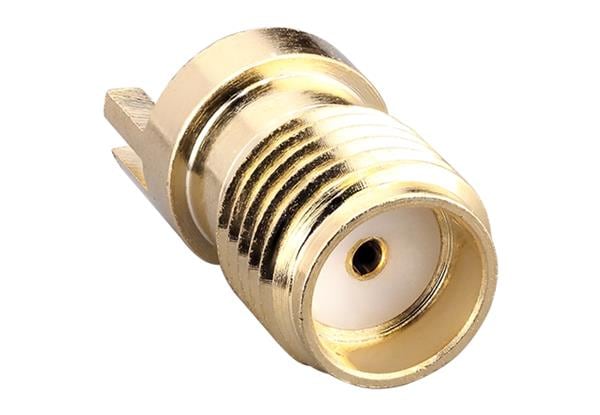

Linx Technologies - TE Connectivity CONSMA023.031-G Connectors SMA Jack 50 Ohm .031 PCB Edge Mount
ModelCONSMA023.031-G
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
RF Series: SMA
Body Finish: Gold
Orientation: Straight
Unit Weight: 14.305 g
Body Material: Brass
Mating Cycles: 500 Cycles
Mounting Style: Edge Launch
Voltage Rating: 1 kV
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 26.5 GHz
Minimum Frequency: DC
Termination Style: Solder
Coupling Mechanism: Threaded
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
