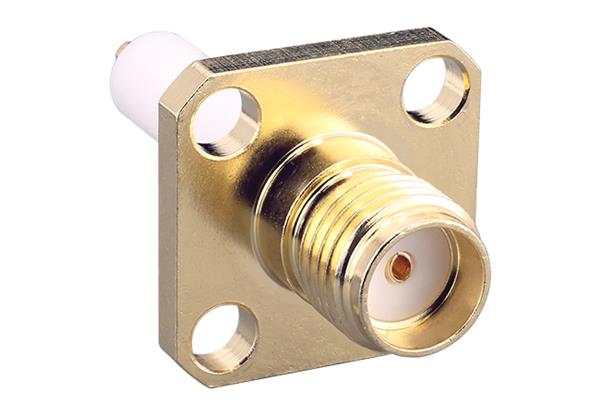

Linx Technologies - TE Connectivity CONSMA016-15-G Connectors SMA ST JCK-RCP 4HF SDR EXTND
ModelCONSMA016-15-G
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
RF Series: SMA
Body Style: Flange
Body Finish: Gold
Orientation: Straight
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 500 Cycles
Mounting Style: Flange Mount
Voltage Rating: 1.5 kV
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 18 GHz
Minimum Frequency: DC
Termination Style: Solder
Coupling Mechanism: Threaded
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 155 C
Minimum Operating Temperature: - 55 C
