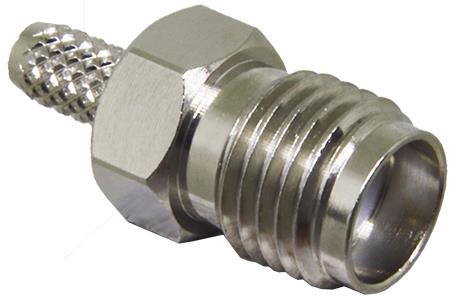

Linx Technologies - TE Connectivity CONSMA011 Connectors SMA Female Cable End Crimp RG-174 Cable

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

RF Series: SMA

Body Style: Straight

Cable Type: RG-174

Body Finish: Nickel

Orientation: Straight

Unit Weight: 3.272 g

Body Material: Brass

Mating Cycles: 500 Min

Insertion Loss: 0.04 dB max

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 335 VRMS

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 18 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
