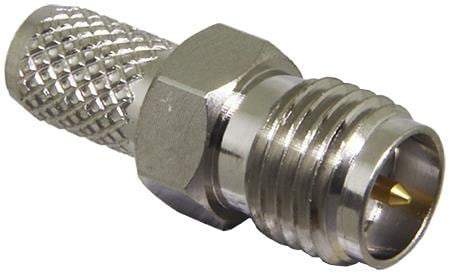

Linx Technologies - TE Connectivity CONREVSMA011-R58 Connectors RP-SMA Fml Cbl End Crimp - RG-58 Cbl

Gender: Jack (Pin)

Polarity: Reverse

Impedance: 50 Ohms

RF Series: RP-SMA

Body Style: Straight

Cable Type: RG-58

Body Finish: Nickel

Orientation: Straight

Unit Weight: 3.635 g

Body Material: Brass

Mating Cycles: 500 Min

Insertion Loss: 0.04 dB max

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 500 VRMS

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 12.4 GHz

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
