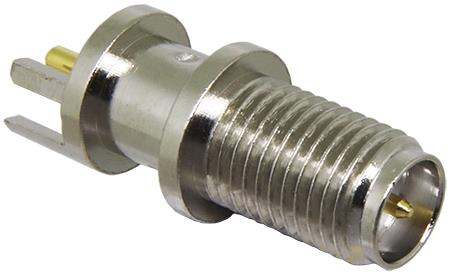

Linx Technologies - TE Connectivity CONREVSMA006.062 Connectors RPSMA Fml Edge Multi Mnt for 0.062" PCB
ModelCONREVSMA006.062
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Pin)
Polarity: Reverse
Impedance: 50 Ohms
RF Series: RP-SMA
Body Style: Straight
Body Finish: Nickel
Orientation: Straight
Unit Weight: 4.315 g
Body Material: Brass
Mating Cycles: 500 Min
Insertion Loss: 0.04 dB max
Mounting Style: Edge Launch
Contact Plating: Gold
Contact Material: Brass
Maximum Frequency: 18 GHz
Termination Style: Solder
Coupling Mechanism: Threaded
Contact Termination: Solder
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
